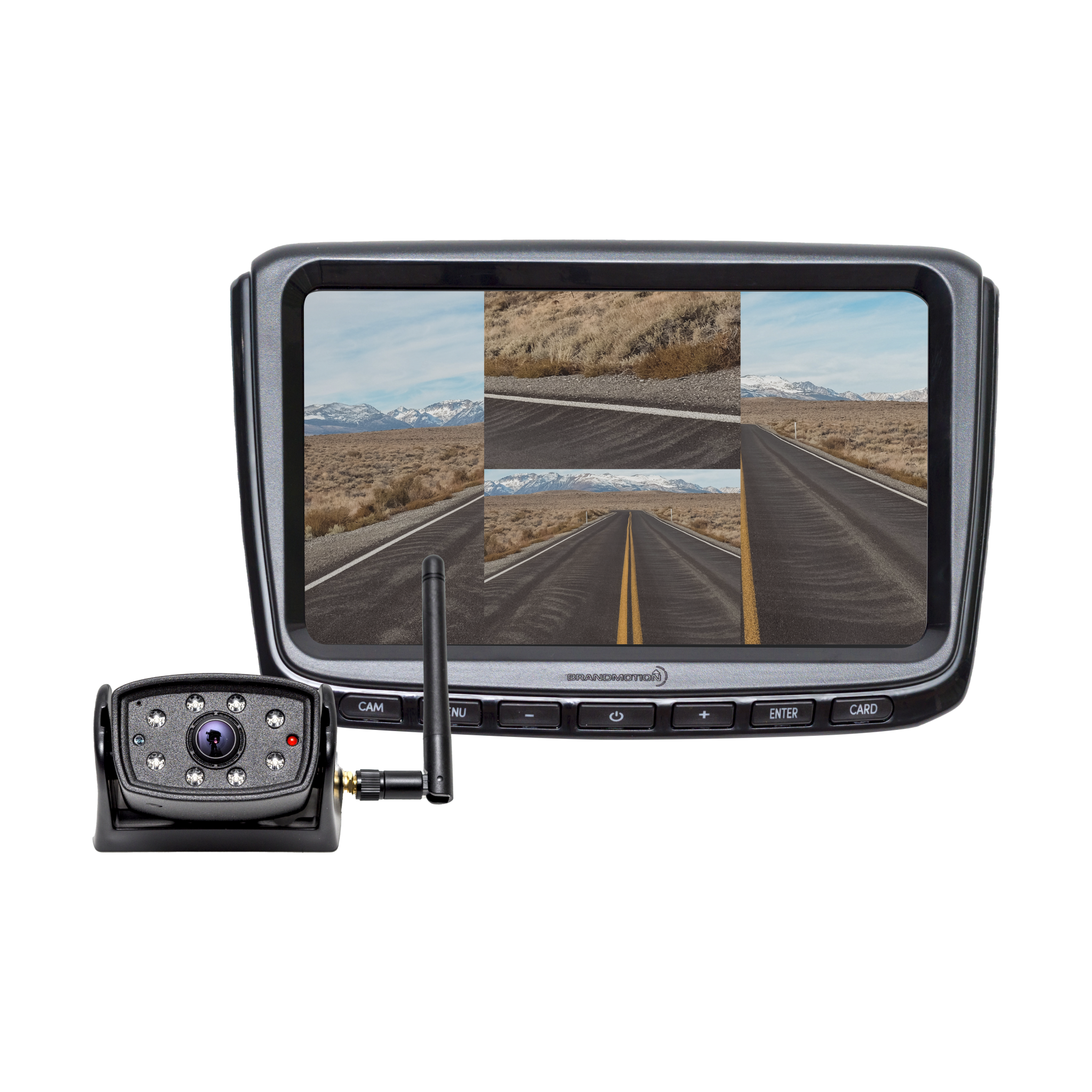

Wireless HD Observation System with 7″ DVR Monitor

Tired of driving or parking your trailer/RV with next to no visibility? Brandmotion’s Wireless HD Observation System allows you to see all around your trailer or RV with ease. Our team has crafted a vision system with cutting edge technology and the durability to last. The AHDS-7810v2 comes with a 7-inch monitor and a 1080p HD wireless camera, allowing you to clearly see your surroundings. Our innovative technology has extremely low latency, meaning virtually no image lag between the camera and monitor. The IP68 Waterproof Rating allows for powerful performance in extreme conditions.  Expand your system up to 4 cameras on one monitor with the compatible AHDS-7811v2 Wireless HD Observation Camera and the AHDS-7812 Wireless HD Side Marker Light Cameras!     Looking to plug your system directly into a traditional power outlet? Check out our converter power block. Popular for use when inside an RV.
Home Shop Monitors Wireless HD Observation System with 7″ DVR Monitor

0

User feedback

Wireless HD Observation System with 7″ DVR Monitor

Tired of driving or parking your trailer/RV with next to no visibility? Brandmotion’s Wireless HD Observation System allows you to see all around your trailer or RV with ease. Our team has crafted a vision system with cutting edge technology and the durability to last. The AHDS-7810v2 comes with a 7-inch monitor and a 1080p HD wireless camera, allowing you to clearly see your surroundings. Our innovative technology has extremely low latency, meaning virtually no image lag between the camera and monitor. The IP68 Waterproof Rating allows for powerful performance in extreme conditions.  Expand your system up to 4 cameras on one monitor with the compatible AHDS-7811v2 Wireless HD Observation Camera and the AHDS-7812 Wireless HD Side Marker Light Cameras!

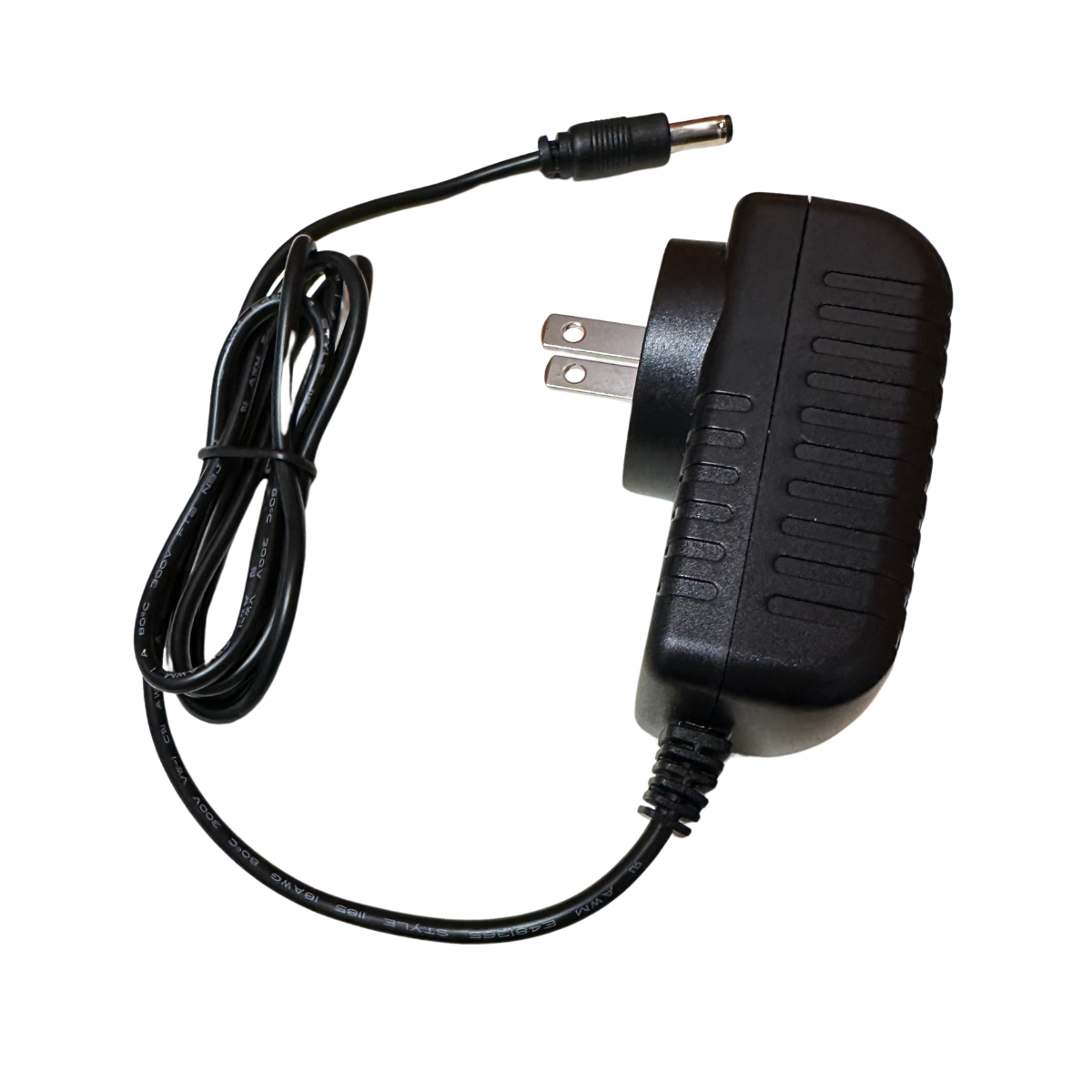

Looking to plug your system directly into a traditional power outlet? Check out our converter power block. Popular for use when inside an RV.

Part Number:

AHDS-7810v2

Category:

Categories: ,

MSRP

$579.95

Purchase Options

LEARN MORE AT

Includes Support by Crutchfield℠

  • Wireless
  • Built in camera microphone and monitor speaker
  • High definition video
  • Multi-camera DVR recording
  • Enhanced color night vision
  • Easy installation
  • Quick sync up to 4 cameras

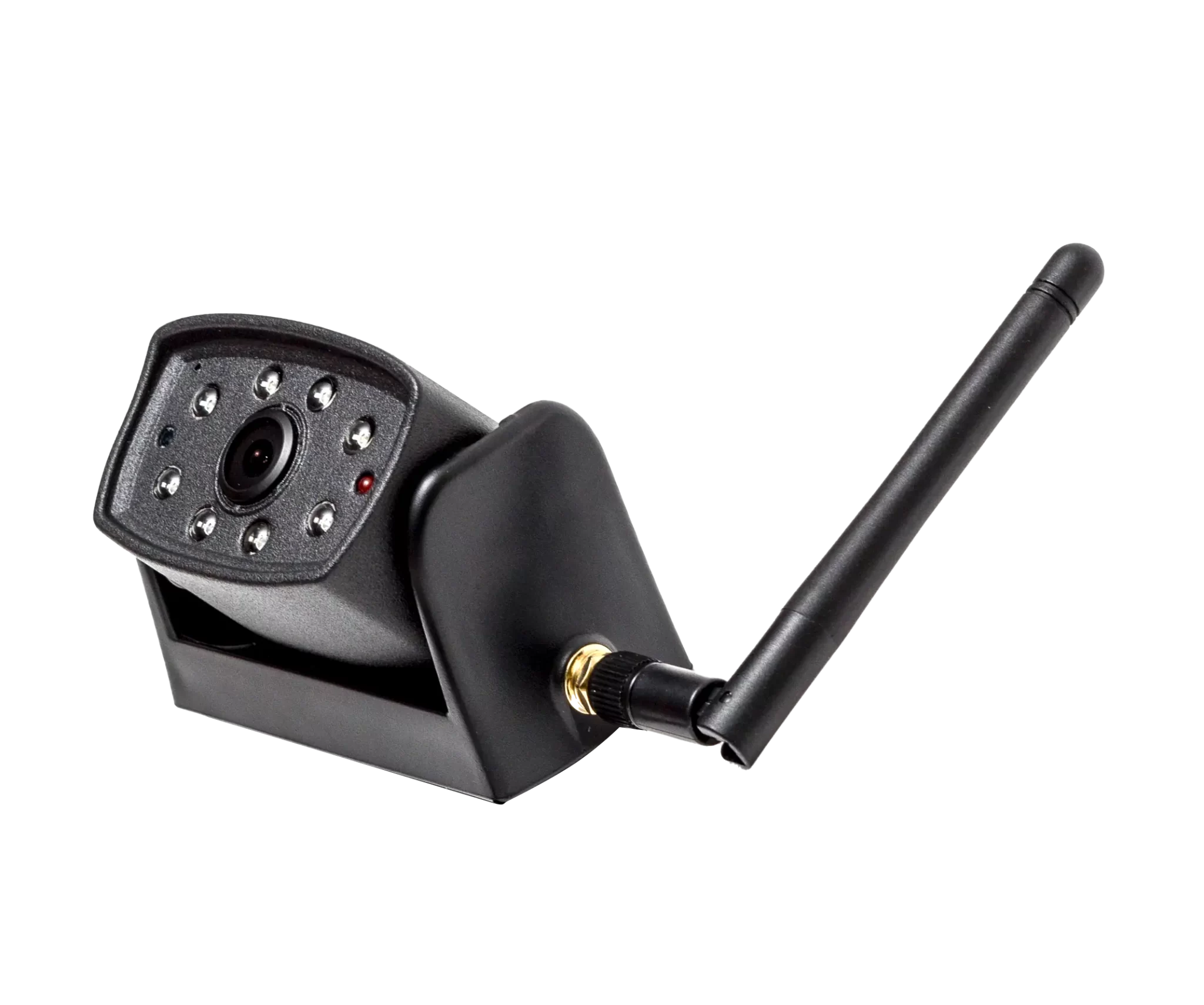

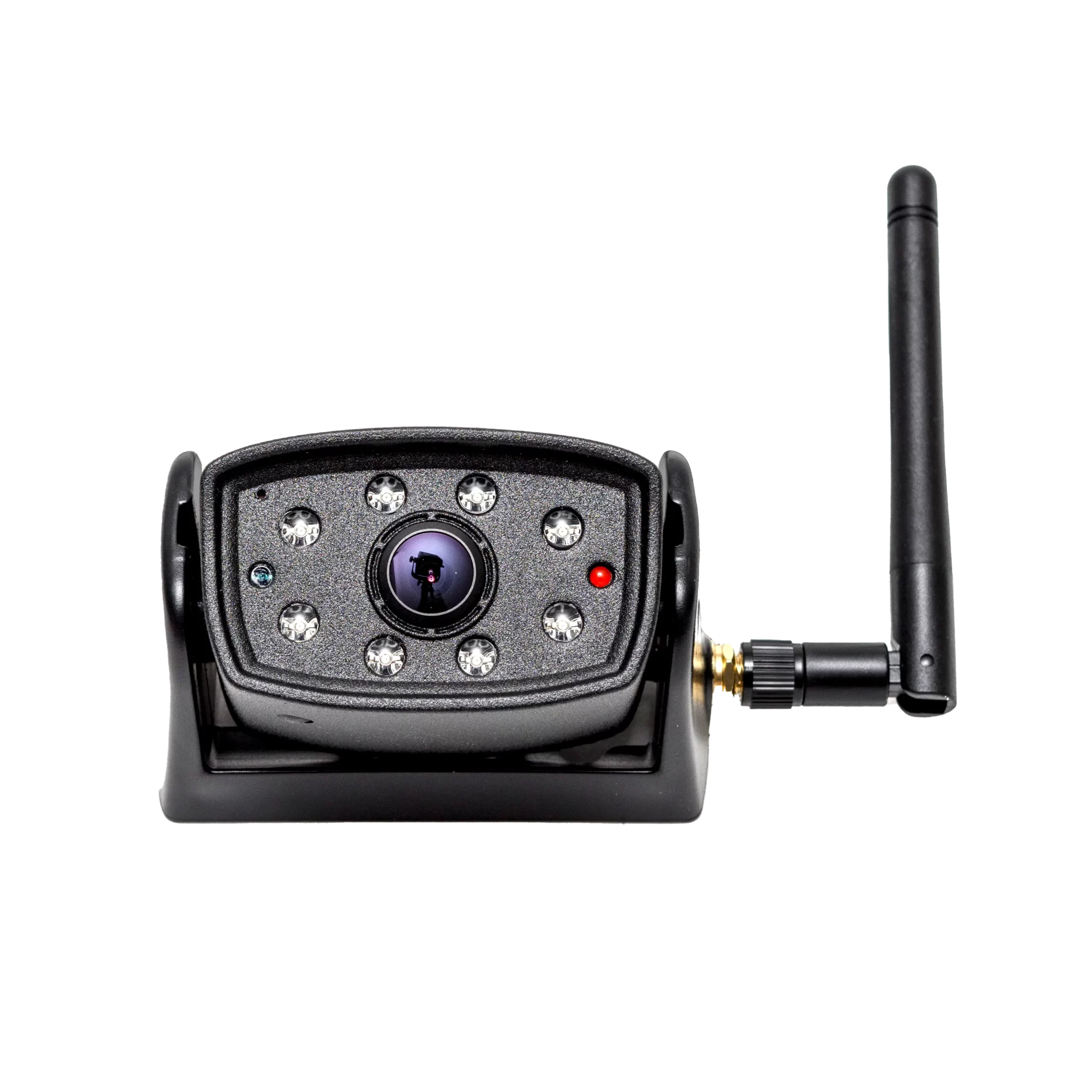

CAMERA

  • Working Voltage DC12V & DC24V
  • Rated Voltage / Current
  • Working Temperature -20℃ to 70℃
  • Storage Temperature -30℃ to 80℃
  • Wireless Connection Type
  • Many Mounting Locations, Rear Recommended
  • Mounting Type: Multiple bracket types for surface mount
  • Field of View (H) (V) 110º,  80º
  • Low Light Night Vision 0.2 LUX
  • Lens Size 22.6mm
  • Built in IRs
  • Enhanced Color Night Vision
  • Waterproof Rating IP68
  • Video Format Output AHD 2.4G
  • Resolution 1936H×1096V

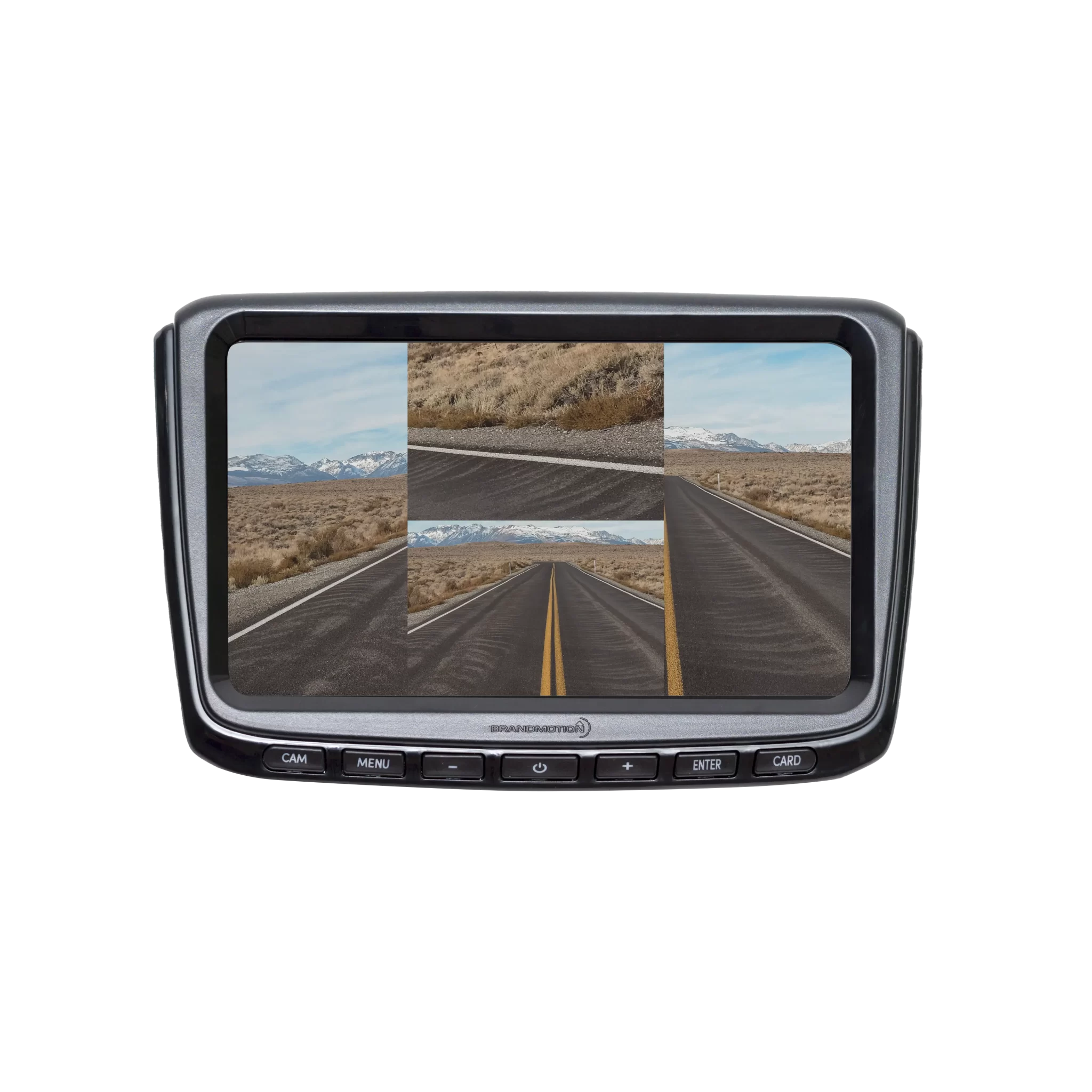

MONITOR

  • Working Voltage DC12V & DC24V
  • Rated Voltage / Current
  • Power Consumption Less than 5W
  • Working Temperature -20℃ to 70℃
  • Storage Temperature -30℃ to 80℃
  • Display Brightness 700cd
  • Screen Size 7 inches
  • Resolution 1024*600
  • Aspect Ratio 16:9
  • Camera Connection Type Wireless (max 4 cameras)
  • Video Format Input
  • DVR Built-in (max 128 SD card)
  • Built-in Speaker
  • No Video Trigger Wire
  • Universal
