SummitView™ Jeep Wrangler (JK/JL) Adjustable Rear Vision System For Aftermarket Display

Finally – an answer for Jeep Wrangler owners who want to add the safety and practicality of Rear Vision! Brandmotion’s exclusive line of Jeep Wrangler Rear Vision Systems gives you the edge in offering high-quality backup protection that’s not available anywhere else using our patented Stainless Steel Jeep bracket to guarantee a perfect fit! This rear vision kit uses the highest quality CMOS camera you can buy, an improved design camera with exceptional image clarity and crispness, as well as enhanced brightness for backing up at night. This kit is designed for Jeep Wranglers with virtually any wheel, including the spare tire. It is compatible with vehicles with an aftermarket display such as an aftermarket navigation radio or another display monitor. This system includes a composite (RCA) connection to the video input monitor. Additionally, this system includes the RCA to Factory 22 Pin connector for customers who wish to get the vehicle programmed by a dealer.

0

User feedback

SummitView™ Jeep Wrangler (JK/JL) Adjustable Rear Vision System For Aftermarket Display

Finally – an answer for Jeep Wrangler owners who want to add the safety and practicality of Rear Vision! Brandmotion’s exclusive line of Jeep Wrangler Rear Vision Systems gives you the edge in offering high-quality backup protection that’s not available anywhere else using our patented Stainless Steel Jeep bracket to guarantee a perfect fit!

This rear vision kit uses the highest quality CMOS camera you can buy, an improved design camera with exceptional image clarity and crispness, as well as enhanced brightness for backing up at night. This kit is designed for Jeep Wranglers with virtually any wheel, including the spare tire. It is compatible with vehicles with an aftermarket display such as an aftermarket navigation radio or another display monitor. This system includes a composite (RCA) connection to the video input monitor. Additionally, this system includes the RCA to Factory 22 Pin connector for customers who wish to get the vehicle programmed by a dealer.

Part Number:

SUTV-8848

Category:

Categories: ,

MSRP

$204.95

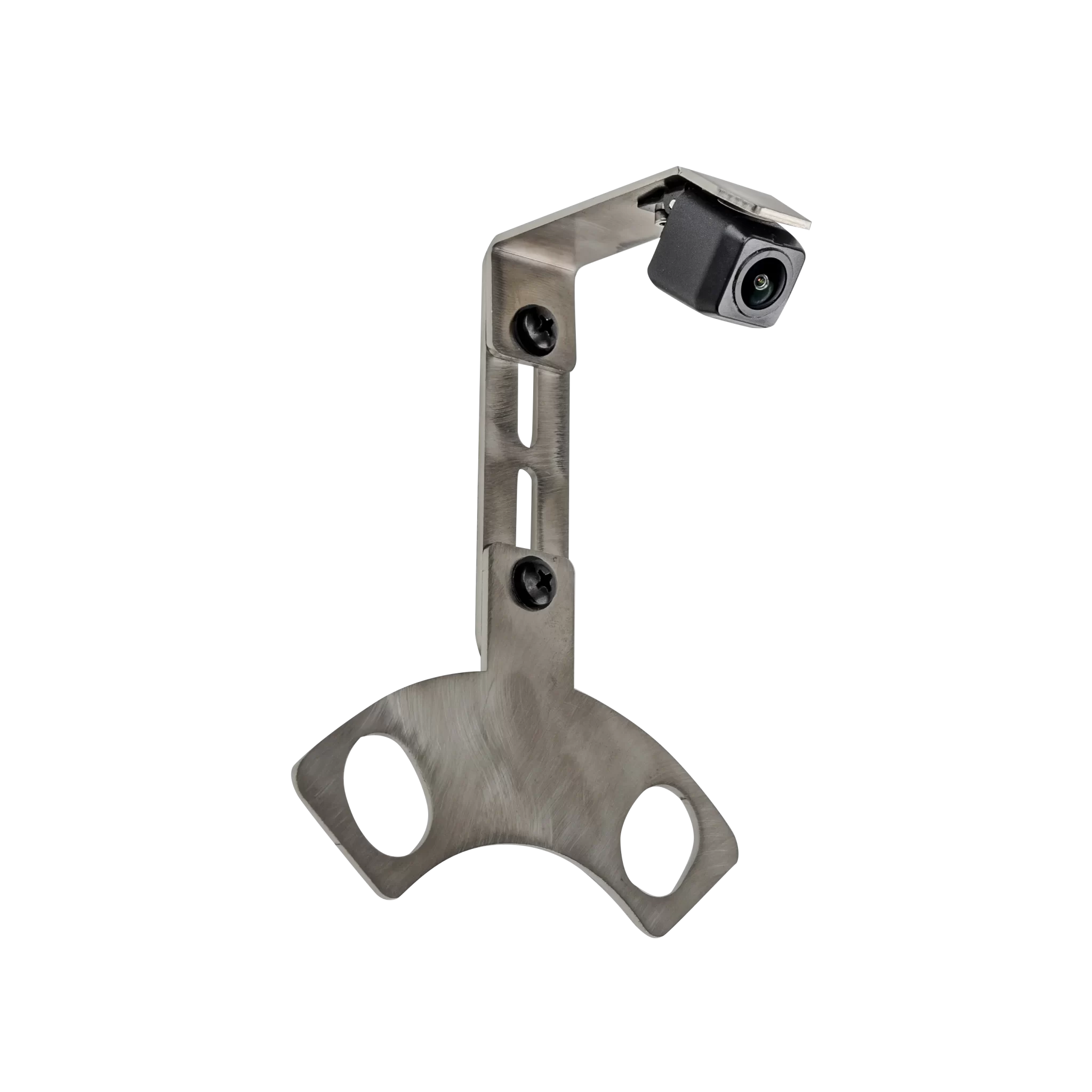

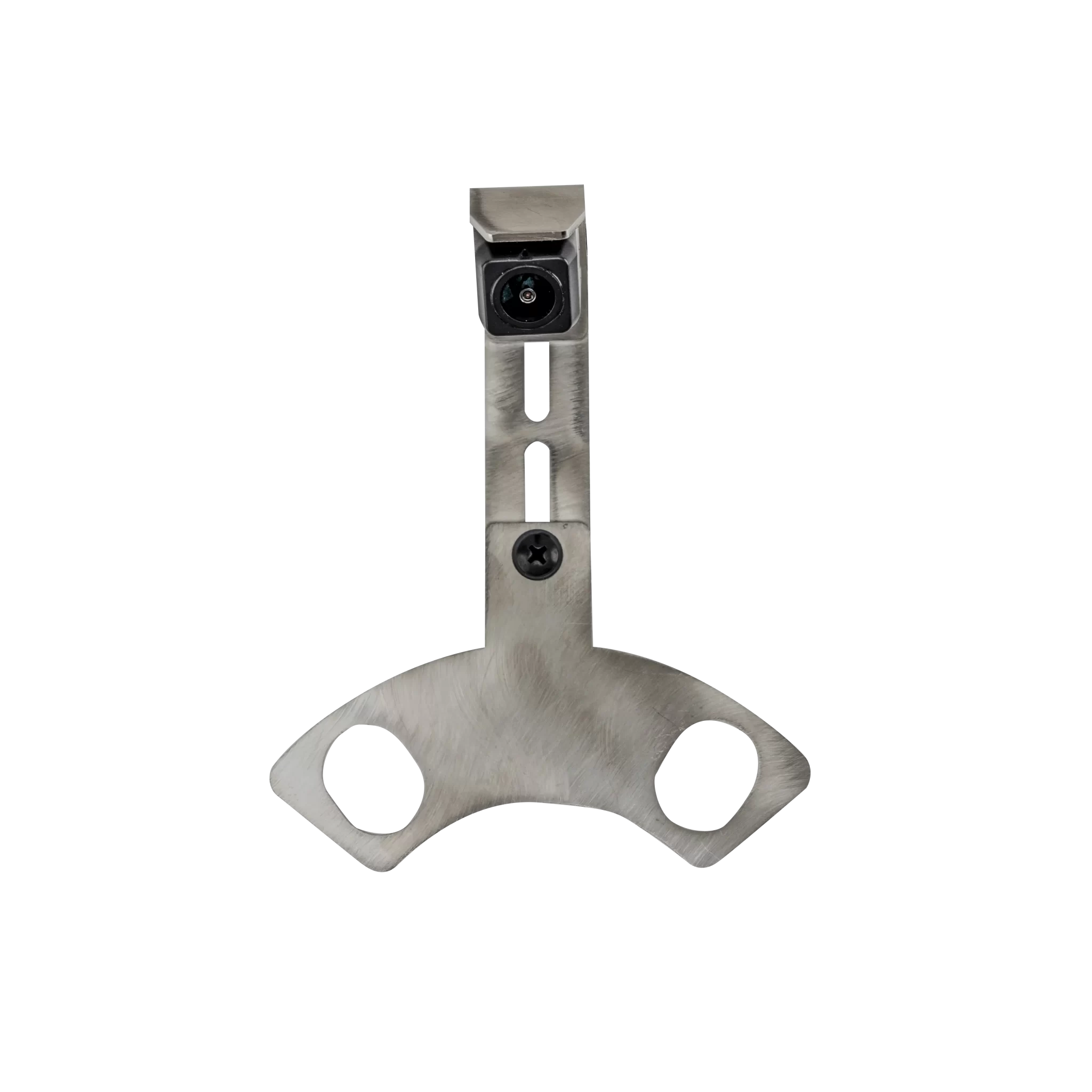

  • Brandmotion™ Exclusive Stainless Steel Rear Tire Mount Ensures Perfect Fit
  • High Quality CMOS Camera
  • Color Image With Automatic White Balance
  • Waterproof Case With Anti-fog Lens
  • Includes Factory 22 Pin to RCA Connector

CAMERA

  • Working Voltage 9v – 16v
  • Rated Voltage / Current 130ma
  • Working Temperature -20℃ to 70℃
  • Storage Temperature -30℃〜85℃
  • Connection Type RCA
  • Mounting Locations Rear
  • Mounting Type Spare tire location
  • Field of View (H) (V) 150º x 100º
  • Low Light Night Vision 0.1 LUX
  • Lens Size/type CMOS
  • Built in IRs No
  • Waterproof Rating IP68
  • Video Format Output NTSC
  • Resolution 480p
  • Jeep Wrangler JK 2007-2018 with Aftermarket Display
  • Jeep Wrangler JL 2018-2021 with Aftermarket Display

If you are looking for a single camera rear vision system for a factory display radio, please see SUTV-8847.
