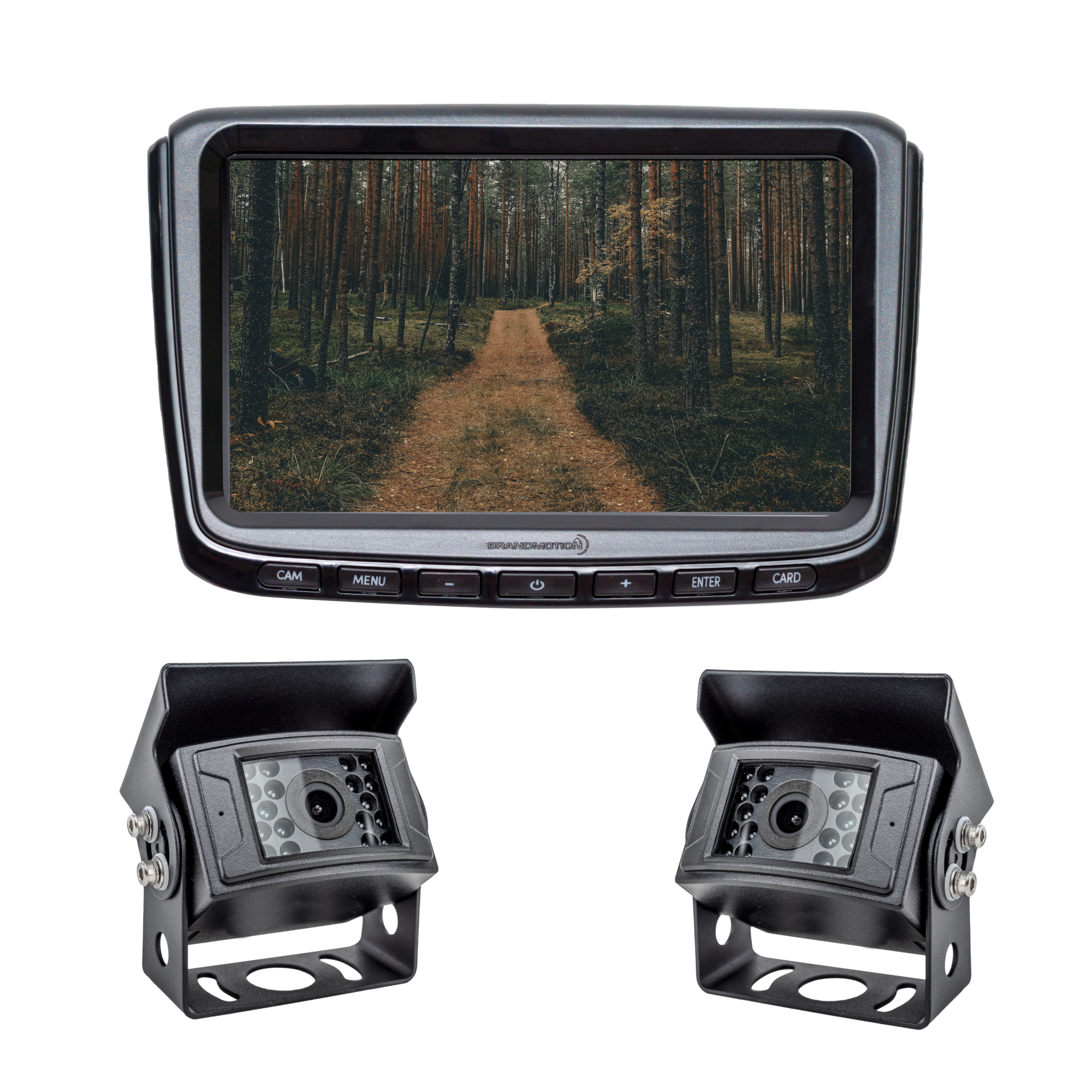

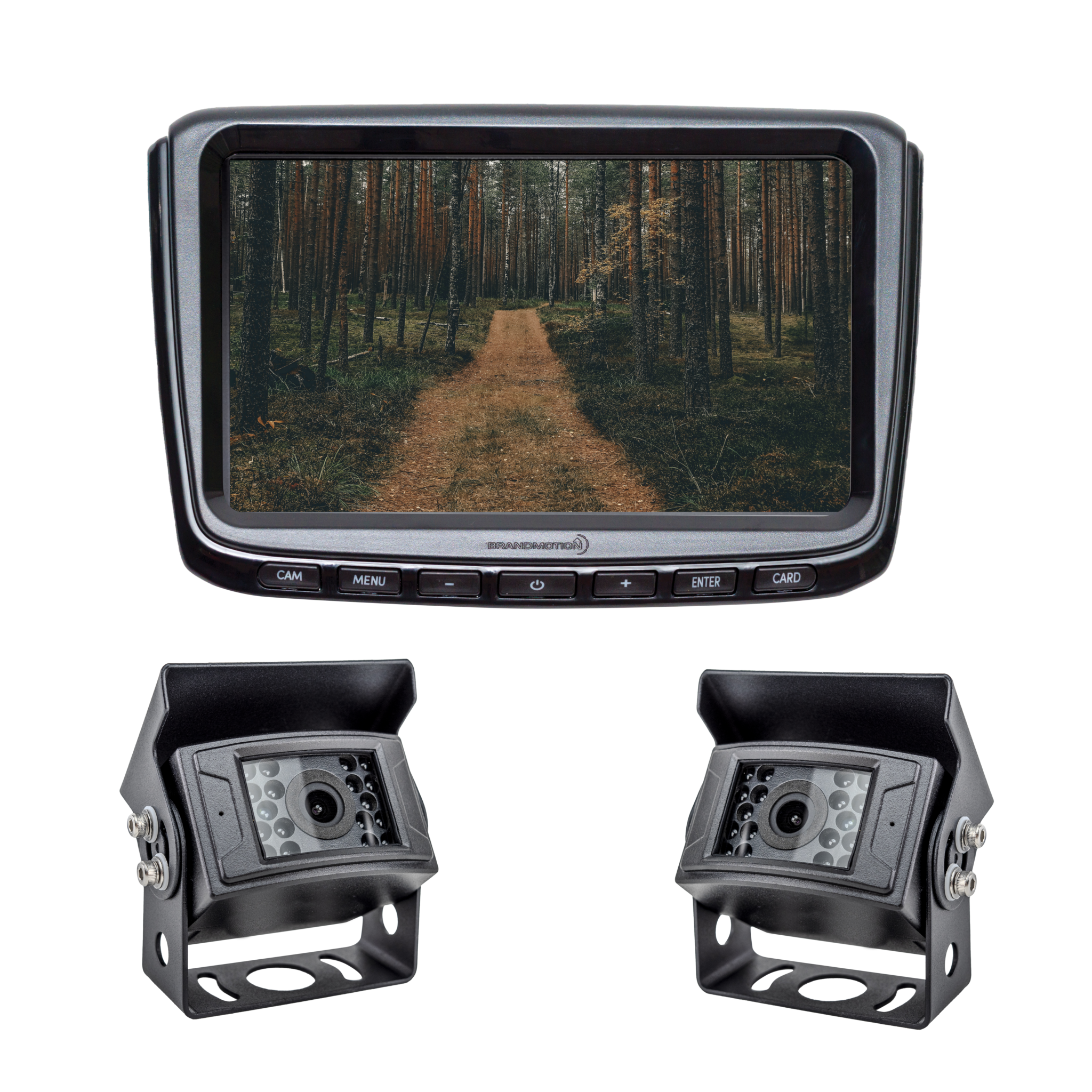

SummitView™ UTV Dual 1080p Camera System with High Definition 7″ DVR Monitor

Tear up the trails safely with the SummitView™ UTV Dual Vision System! A must-have offroading backup system easily mounts to the rear of any off-road vehicle. It is especially helpful for backing up on tight trails and is equipped with infrared technology to deliver superior nighttime vision. Add up to 4 ACCY-CAM5 Cameras to one 7″ LCD monitor offering a rugged roll cage bracket that can fit any standard roll cage tubing. Also comes with a standard foot mount bracket that can be applied to the window or dash.

0

User feedback

SummitView™ UTV Dual 1080p Camera System with High Definition 7″ DVR Monitor

Tear up the trails safely with the SummitView™ UTV Dual Vision System! A must-have offroading backup system easily mounts to the rear of any off-road vehicle. It is especially helpful for backing up on tight trails and is equipped with infrared technology to deliver superior nighttime vision. Add up to 4 ACCY-CAM5 Cameras to one 7″ LCD monitor offering a rugged roll cage bracket that can fit any standard roll cage tubing. Also comes with a standard foot mount bracket that can be applied to the window or dash.

Part Number:

SUTV-2020

Category:

Categories: ,

MSRP

$509.95

  • Connects to factory display
  • Brandmotion™ Exclusive Stainless Steel Rear Tire Mount Ensures Perfect Fit
  • Adjustable Camera Bracket
  • Color Image With Automatic White Balance
  • Waterproof Case With Anti-fog Lens

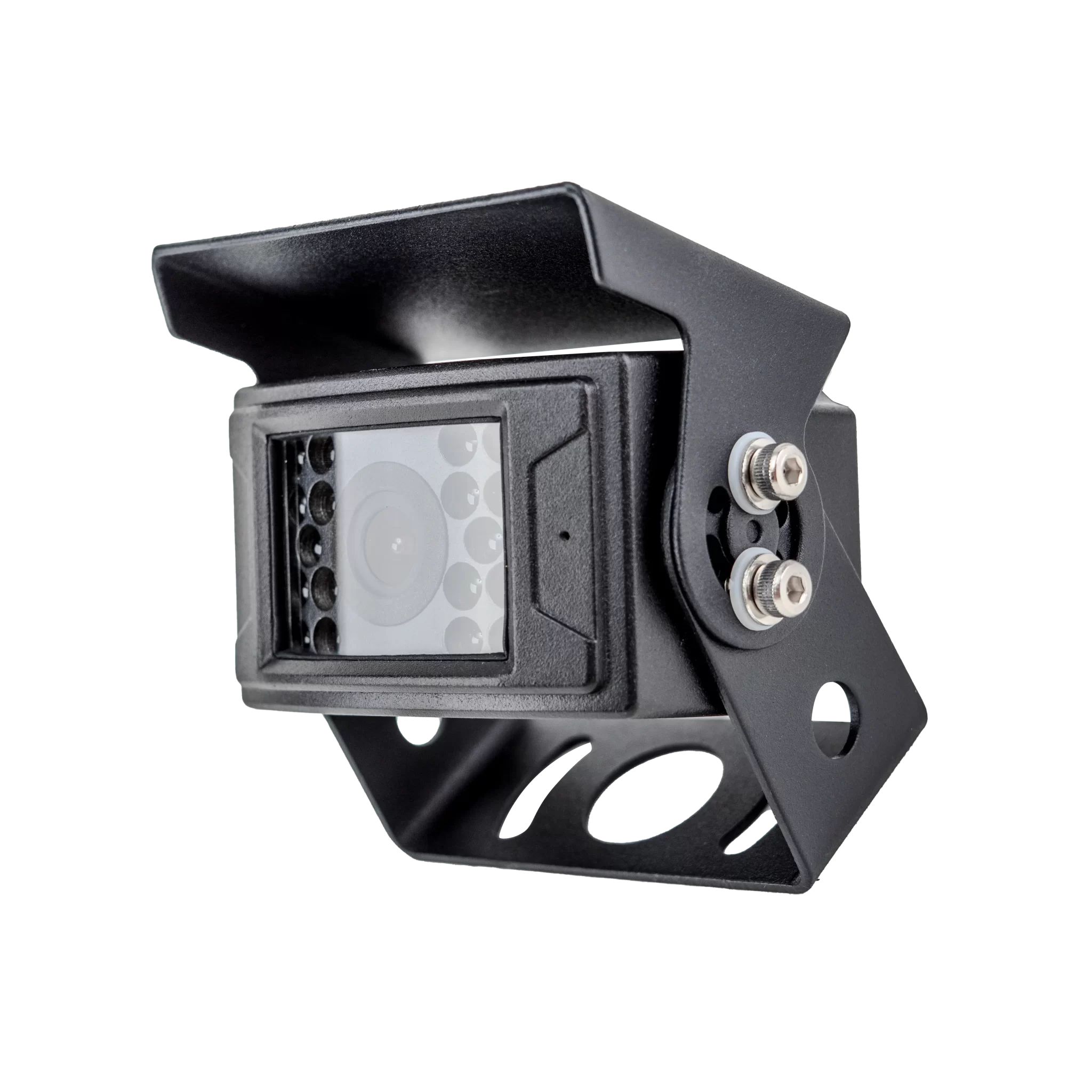

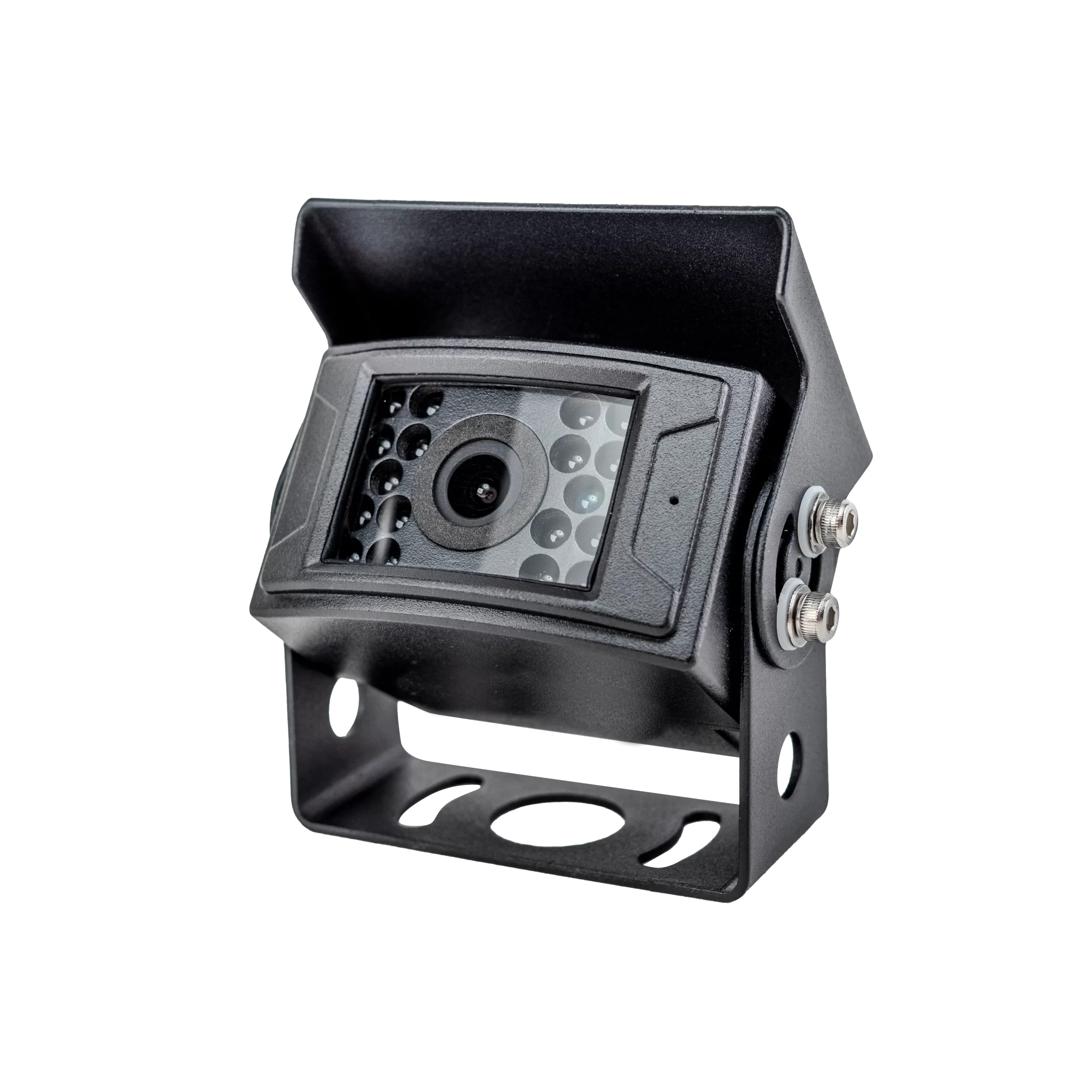

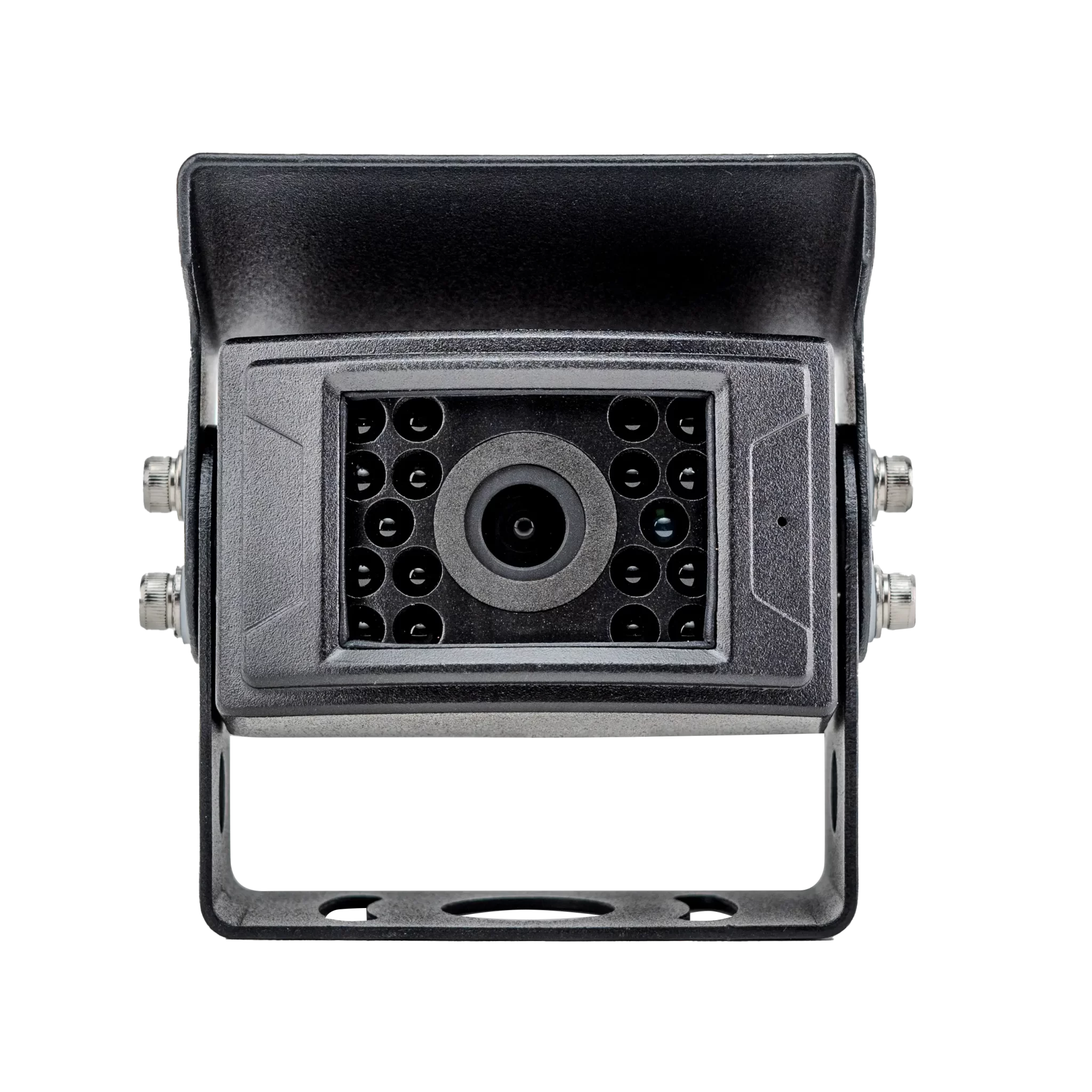

CAMERA

  • Working Voltage 10v – 16v
  • Rated Voltage / Current 130ma
  • Working Temperature -20℃ to 70℃
  • Storage Temperature -30℃〜85℃
  • Connection Type 4-Pin Aviator Wired
  • Mounting Locations Rear or front
  • Mounting Type U-Bracket
  • Field of View (H) (V) 140º, 90º
  • Low Light Night Vision 0.1 LUX
  • Lens Size 1/4 inch
  • Built in IRs Yes
  • Waterproof Rating IP68
  • Video Format Output AHD
  • Resolution 1080p

MONITOR

  • Working Voltage DC12V & DC24V
  • Rated Voltage / Current
  • Power Consumption 4W
  • Working Temperature -20℃-60℃
  • Storage Temperature -30℃-70℃
  • Display Brightness 500cd/m2
  • Screen Size 7 inch
  • Resolution 1024*600(IPS)
  • Aspect Ratio 16:9
  • Camera Connection Type Wired (Max 4 cameras)
  • Video Format Input AHD
  • DVR Built-in Y/N Yes
  • Built in speaker Yes
  • Video trigger input triggers Yes
  • Jeep Wrangler JK 2007-2018 with Factory 6.1″ Display

If you are looking for a single camera rear vision system for an aftermarket radio, please see SUTV-8838
