Universal Digital Rearview Mirror and Cargo Vision System

The FVMR-1160 is a 2 camera input, switchable mirror that gives real-time access to monitor cargo for shifts and prevent losses with a secondary rear-view camera for improved driver safety. This integrated design gives a high-quality OEM look with IR Night vision to see in all lighting conditions and an IP68 rating for all weather conditions.

0

User feedback

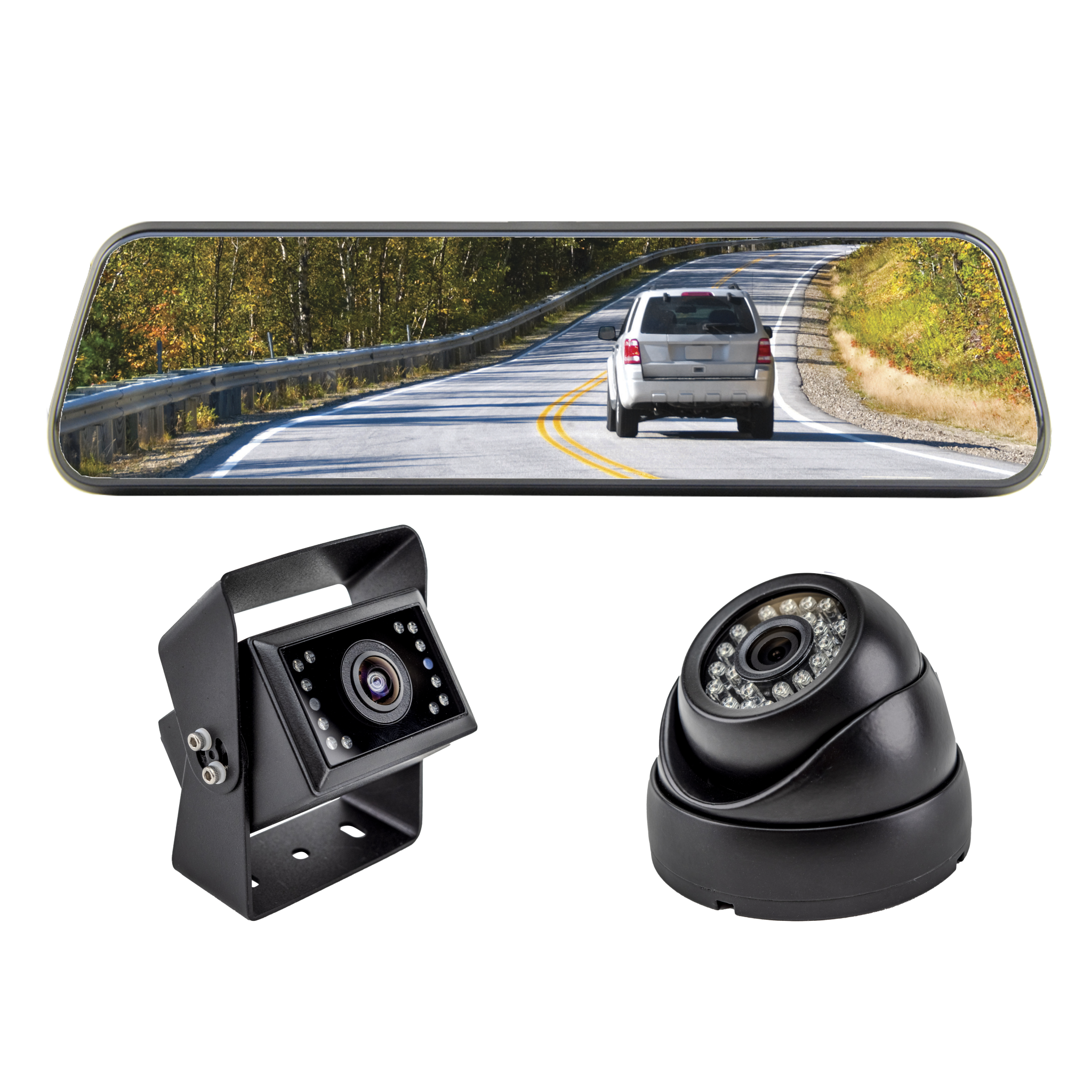

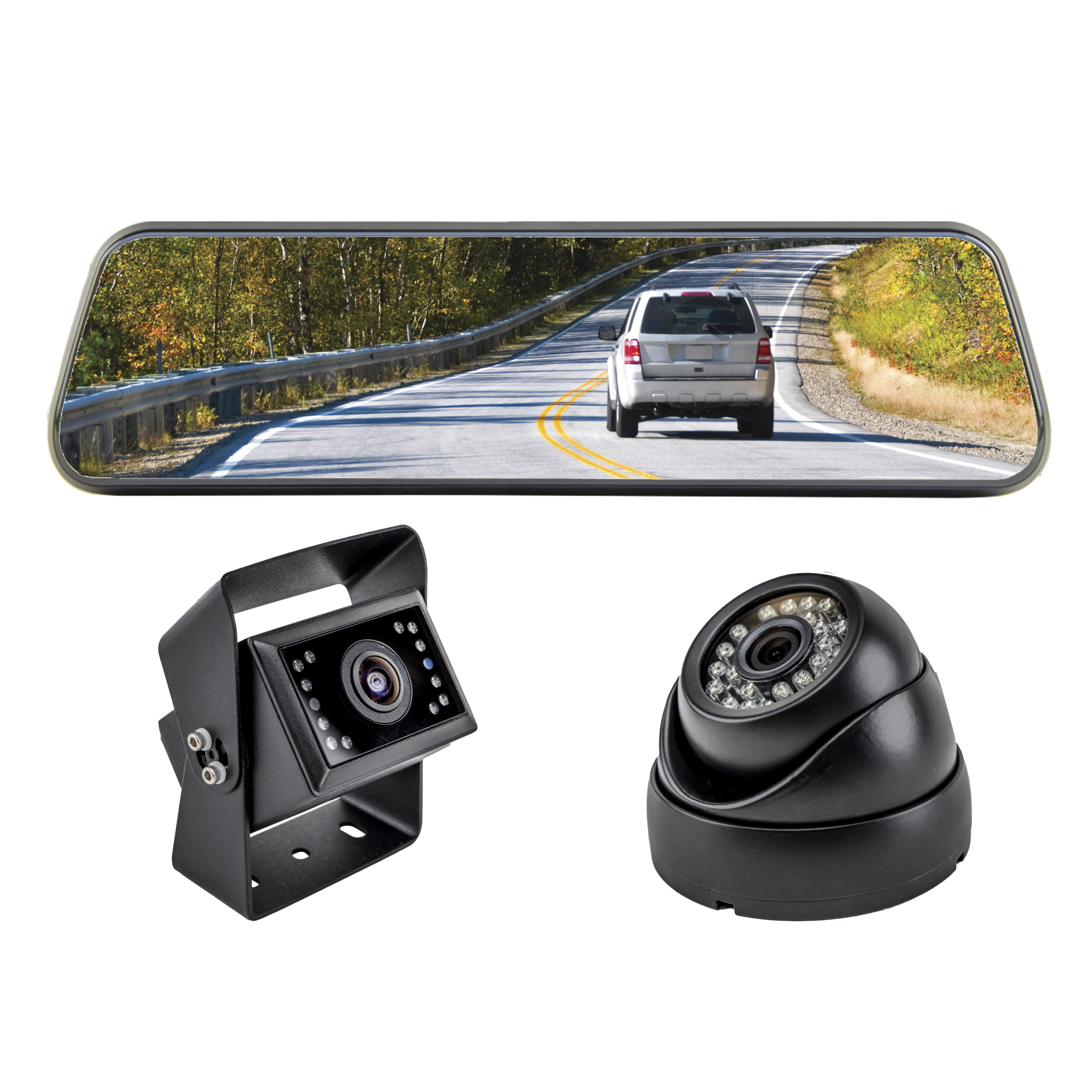

Universal Digital Rearview Mirror and Cargo Vision System

The FVMR-1160 is a 2 camera input, switchable mirror that gives real-time access to monitor cargo for shifts and prevent losses with a secondary rear-view camera for improved driver safety. This integrated design gives a high-quality OEM look with IR Night vision to see in all lighting conditions and an IP68 rating for all weather conditions.

Part Number:

FVMR-1160

Category:

Categories: ,

MSRP

$595.95

Purchase Options

LEARN MORE AT

Includes Support by Crutchfield℠

  • Always On, Observation

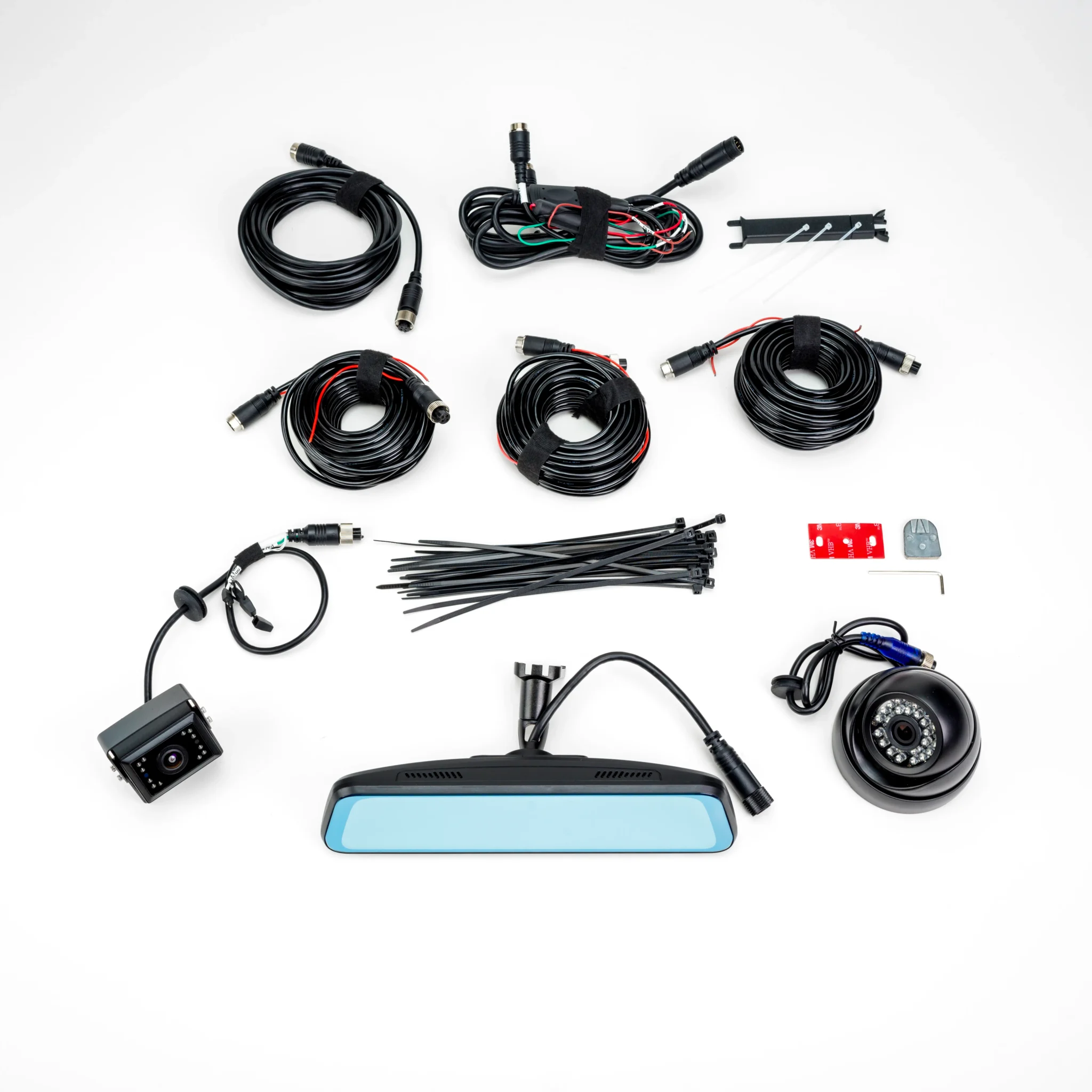

  • 2 Cameras: Rear and Cargo
  • Parking Grid Lines Available
  • Color Image With Automatic White Balance
  • Waterproof & Shockproof Case
  • Mirror Functionality by Holding Bottom Button

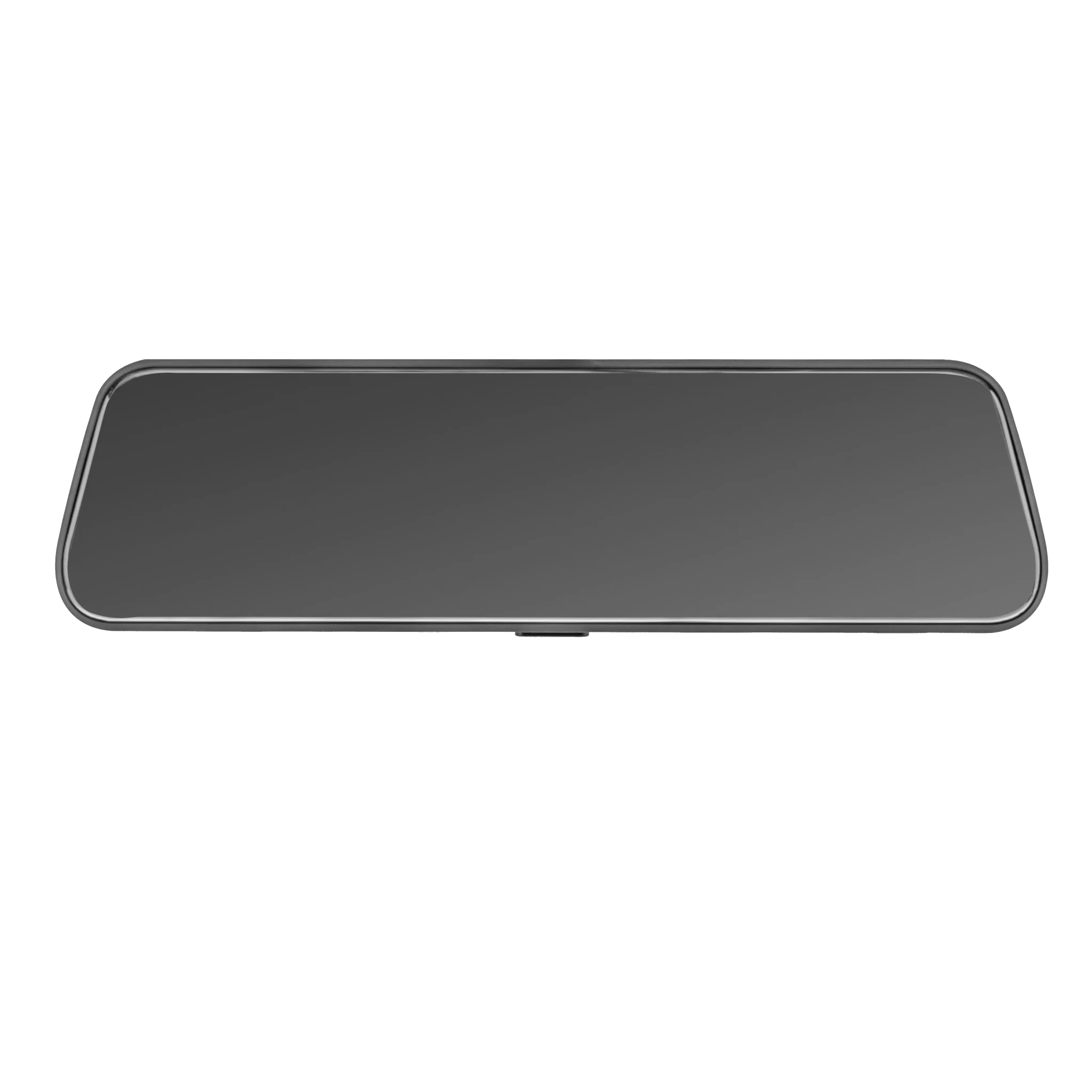

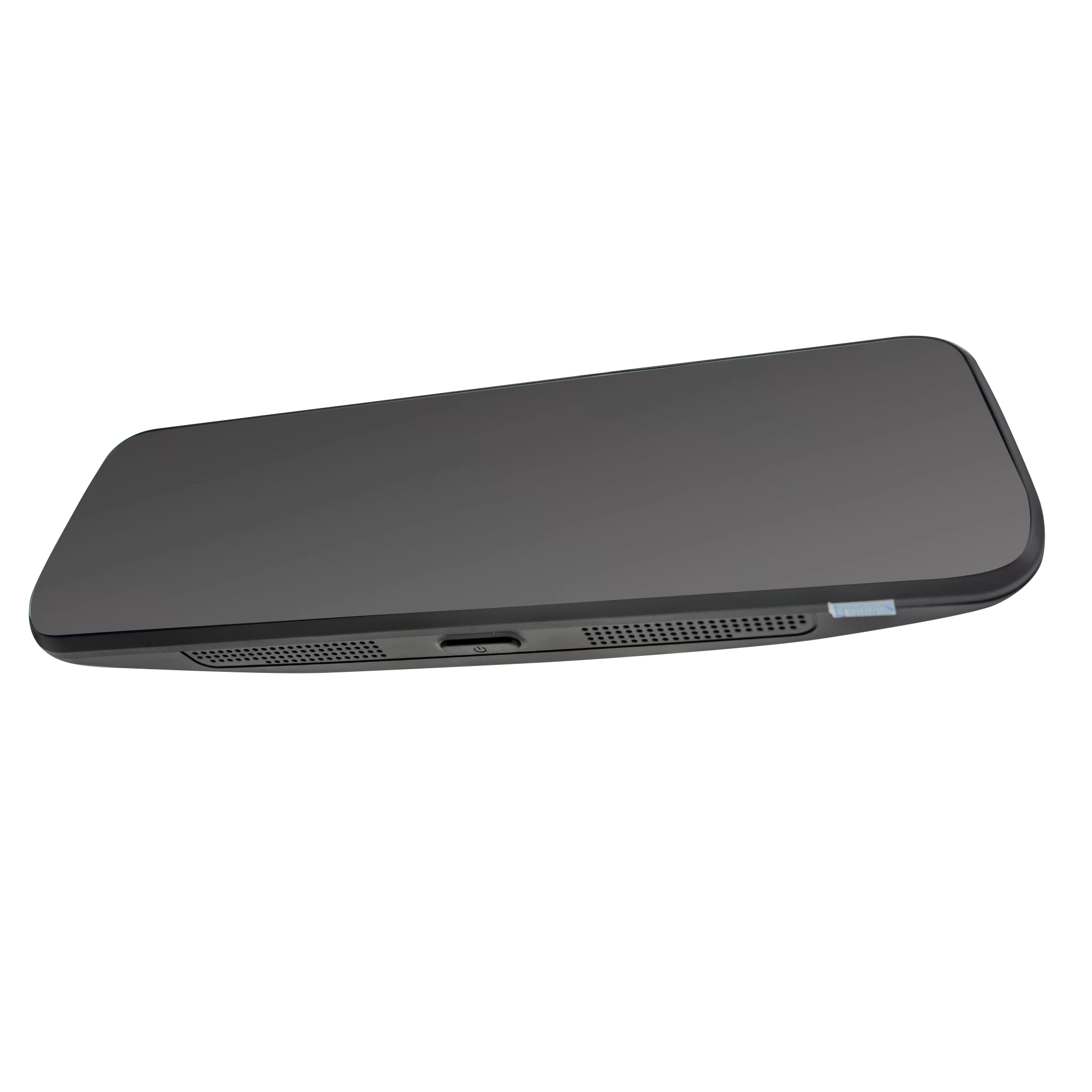

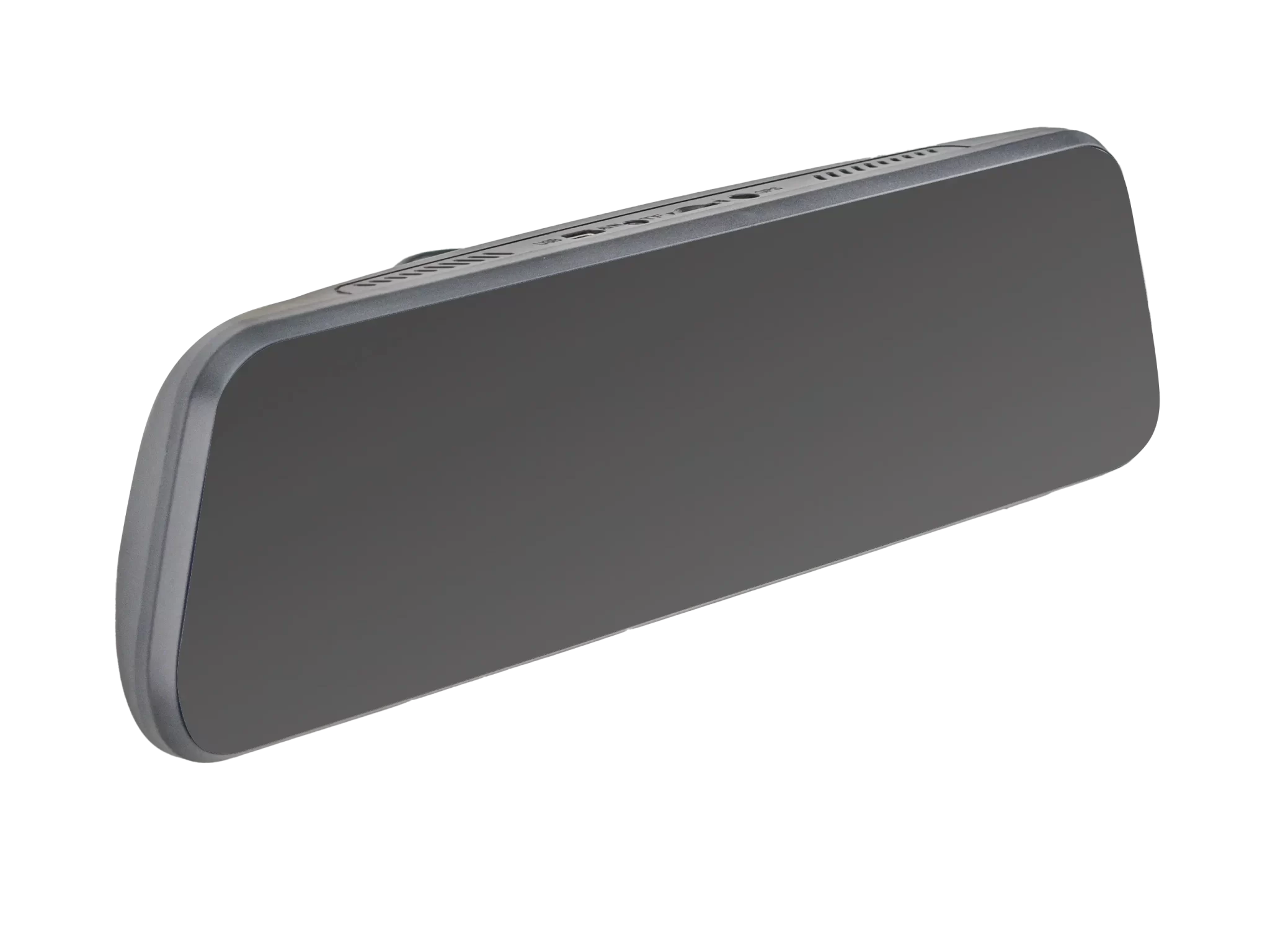

MIRROR

  • Working Voltage DC 12V/24V
  • Rated Voltage / Current
  • Power Consumption
  • Working Temperature -20°C to 70°C
  • Storage Temperature -30°C to 80°C
  • Display Brightness 800cd/m2
  • Screen Size 9.66 inch
  • Resolution 1080p
  • Aspect Ratio 320*1980
  • Camera Connection Type Wired (Max 2 cameras)
  • Video Format Input AHD/CVBS
  • DVR Built-in Y/N No
  • Built in speaker No
  • Video trigger input triggers Yes / Input 1&2
  • Second camera No

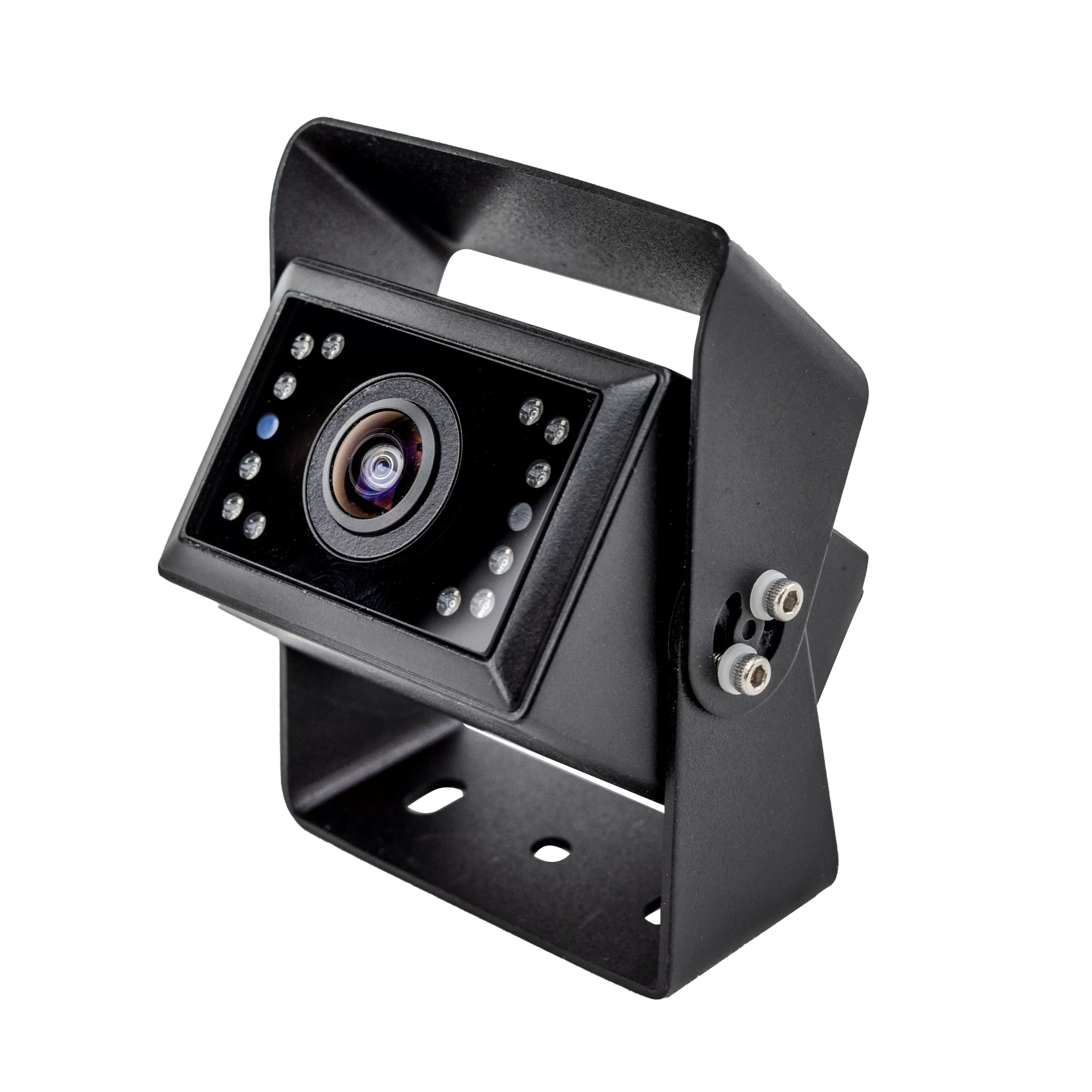

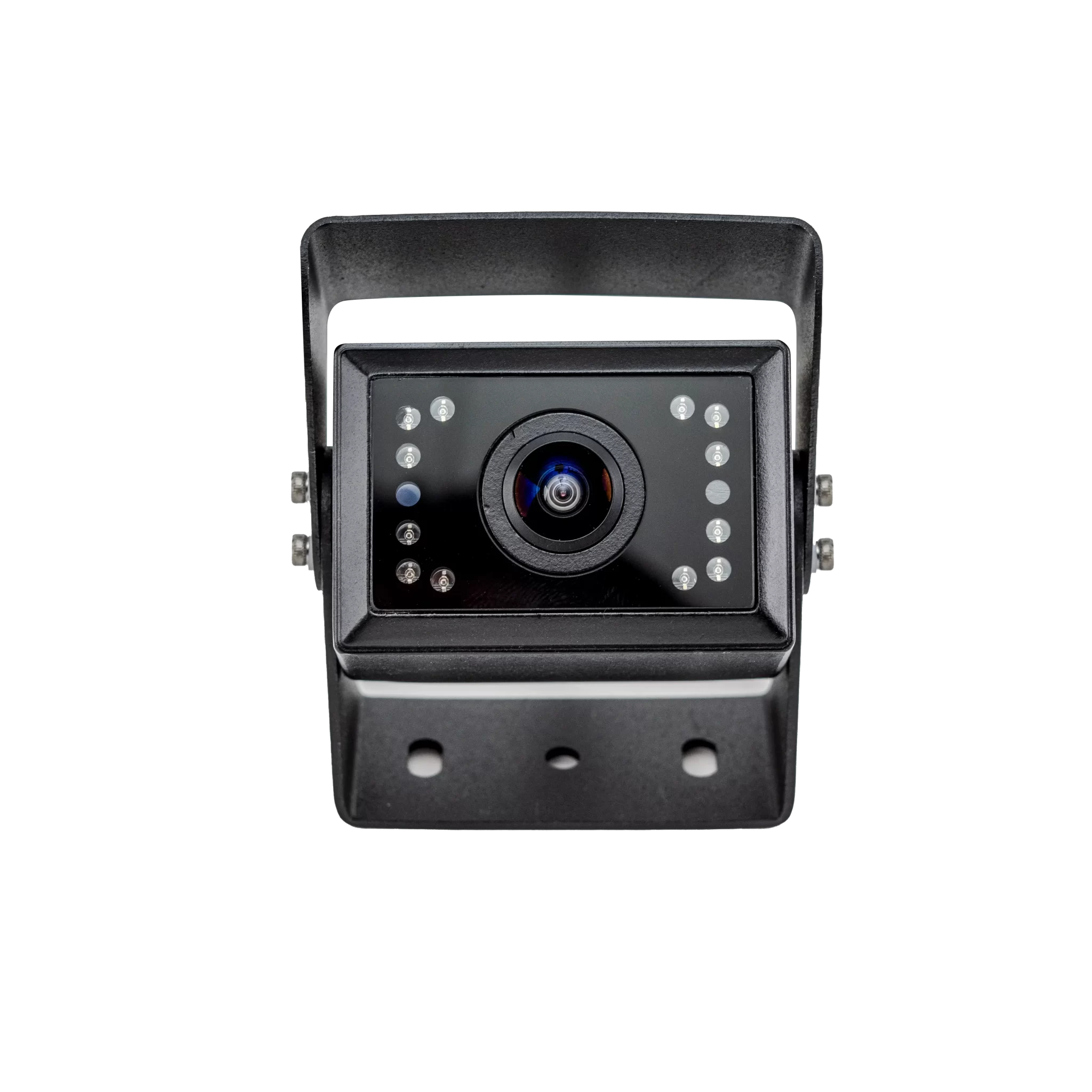

CAMERA

  • Working Voltage 10v – 16v
  • Rated Voltage / Current 130ma
  • Working Temperature -20℃ to 70℃
  • Storage Temperature -30℃〜85℃
  • Connection Type 4-Pin Aviator Wired
  • Mounting Locations Rear or front
  • Mounting Type U-Bracket
  • Field of View (H) (V) 140º, 90º
  • Low Light Night Vision 0.1 LUX
  • Lens Size 1/4 inch
  • Built in IRs Yes
  • Waterproof Rating IP68
  • Video Format Output AHD
  • Resolution 1080p

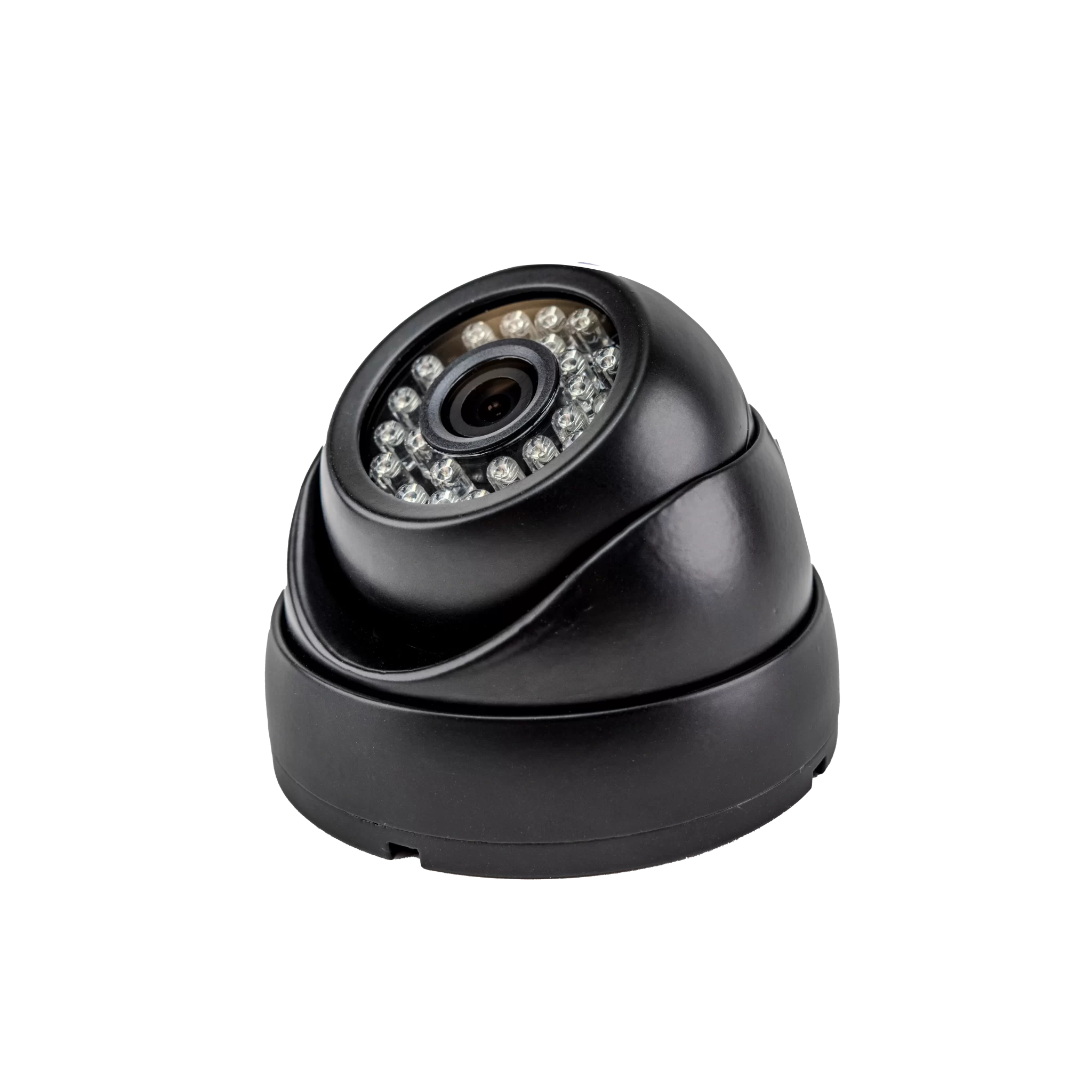

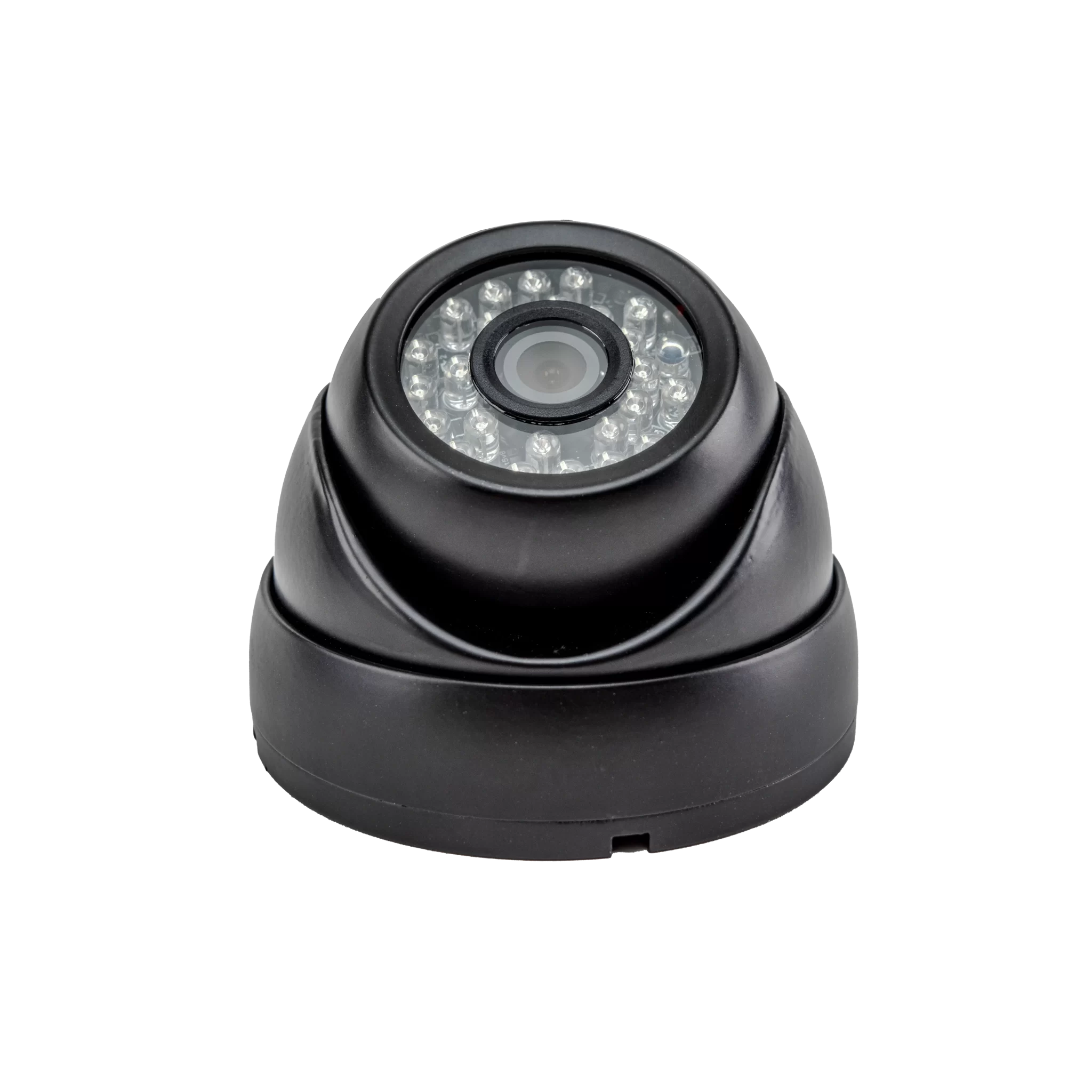

CARGO CAMERA

  • Working Voltage 10v – 16v
  • Rated Voltage / Current 130ma
  • Working Temperature -20℃ to 70℃
  • Storage Temperature -30℃〜85℃
  • Connection Type 4-Pin Aviator Wired
  • Mounting Locations Rear
  • Mounting Type Round roof mount bracket
  • Field of View (H) (V) 140º, 90º
  • Low Light Night Vision 0.1 LUX
  • Lens Size 1/4 inch
  • Built in IRs Yes
  • Waterproof Rating IP65
  • Video Format Output AHD
  • Resolution 1080p
  • Universal
