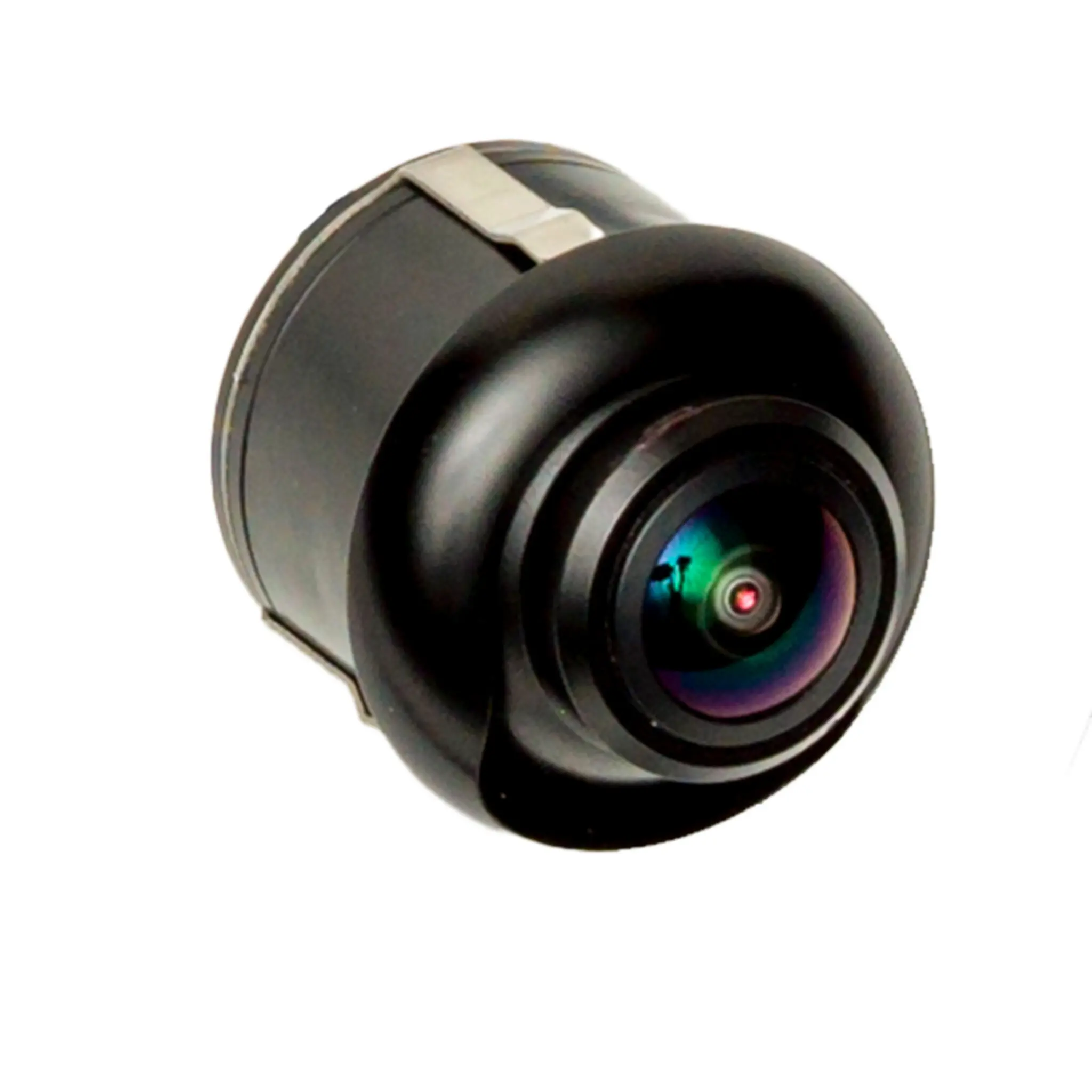

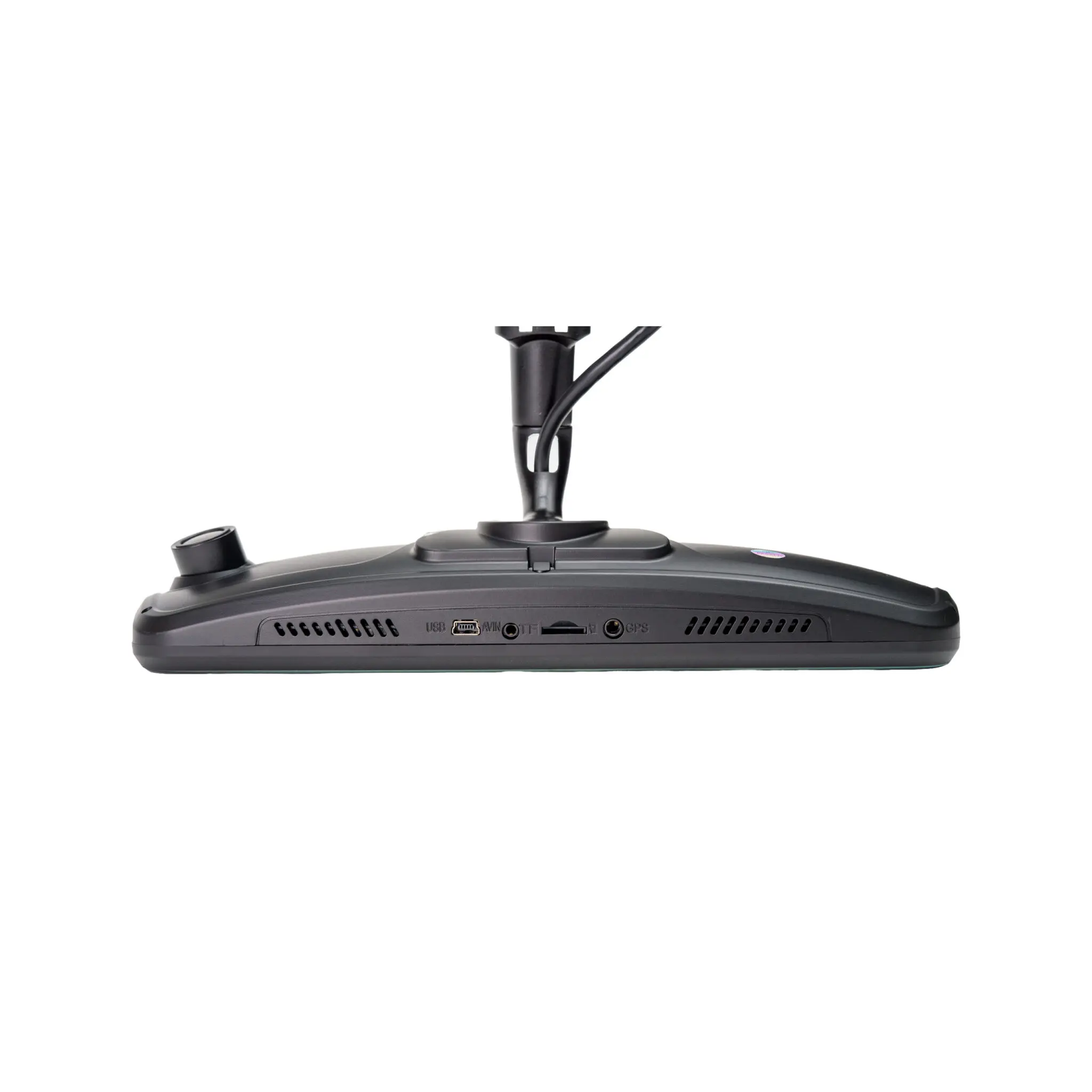

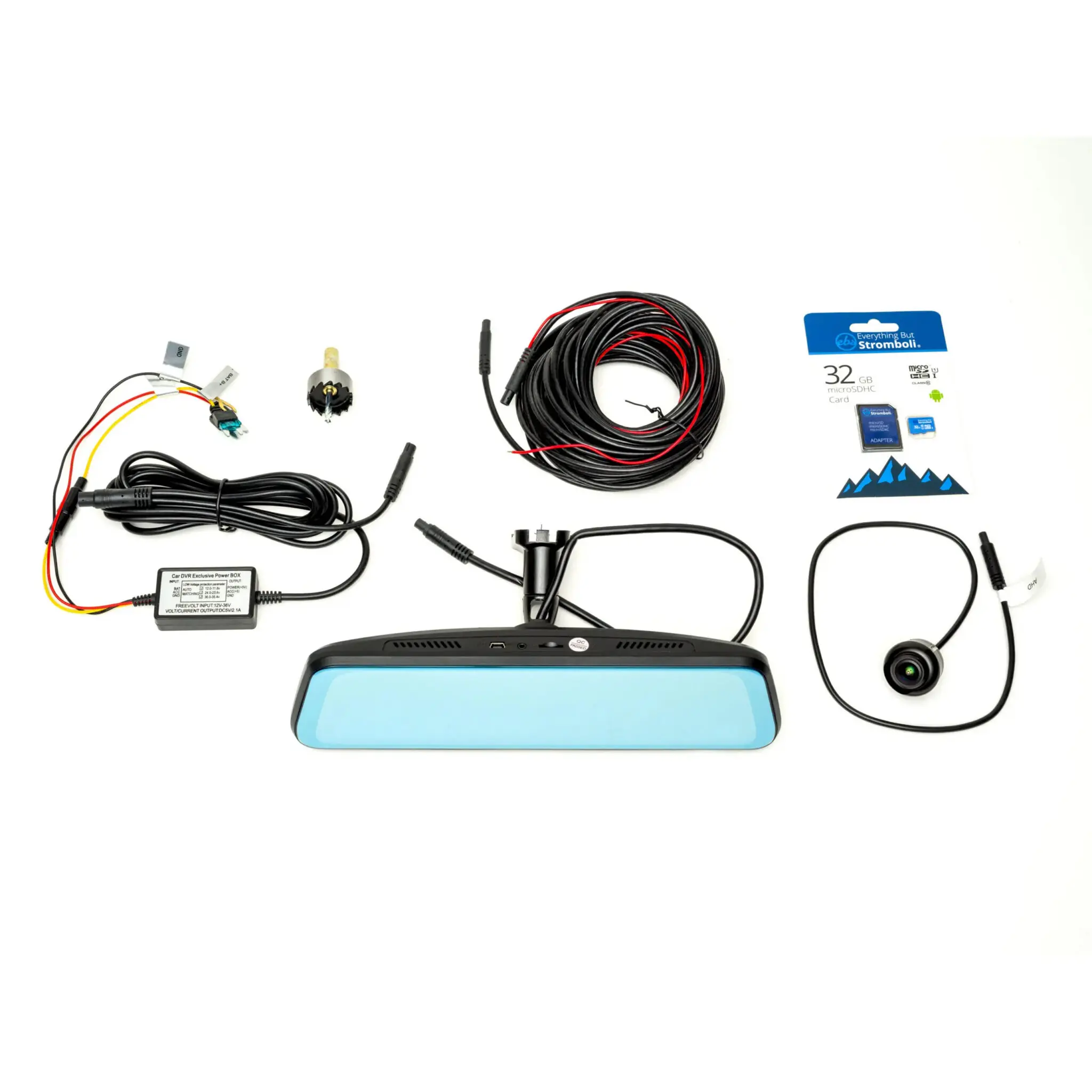

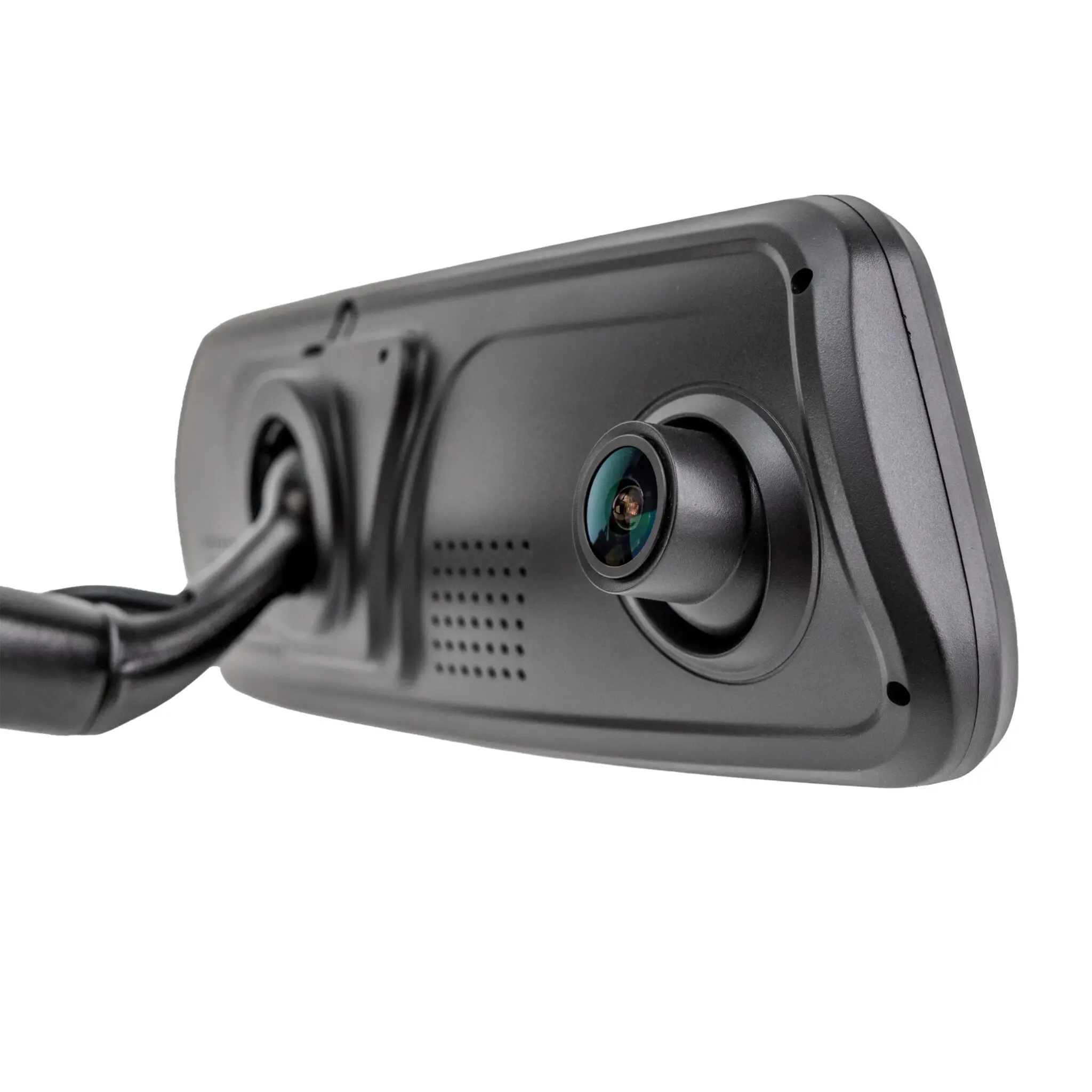

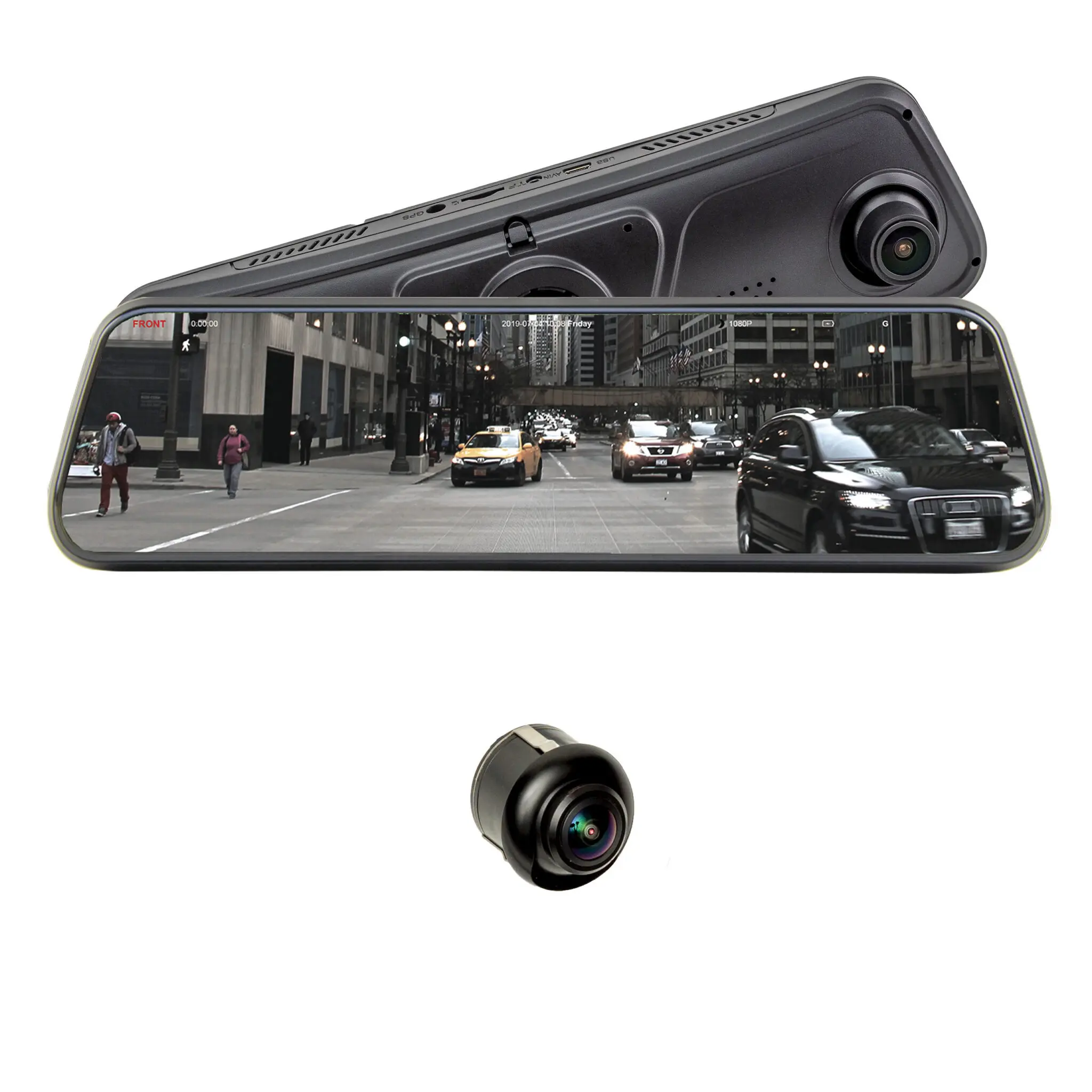

The FullVUE® Gen 2 AHD Mirror Vision System with Adjustable Snap-In Cam is for vehicles where a bracketed rear camera has nowhere clean to mount. The camera drills in flush under a protruding third brake light (Transit Van or Ram Promaster), or on a vertical face such as a tailgate. The interior ball rotates 180° so it can be aimed either direction. The mirror is the same 9.66-inch touchscreen used across the line, with a live 170° rear view, a 2K front camera, and 2-channel DVR recording to a 32 GB microSD card. 62-ft harness.
$685.97
| Working voltage | DC 5V |
| Rated voltage / current | 5V / <85mA |
| Working temperature | −20°C to 70°C |
| Storage temperature | −30°C to 80°C |
| Connection type | Wired to mirror |
| Mounting location | Rear |
| Field of view (H) (V) | 170° / 140° |
| Low light night vision | 0.1 Lux |
| Lens size | 16 mm |
| Built-in IRs | No — low illumination design |
| Waterproof rating | IP67 |
| Video format output | AHD |
| Resolution | 1920 (H) × 1080 (V) |
| Housing | Adjustable snap-in, drill-in |
| Mounting type | Interior camera ball rotates 180° for vertical-face mounting. |
| Mounting positions | Under-mount beneath a protruding third brake light, or flush mount on a vertical face such as a tailgate |
| Harness length | 62 ft |
