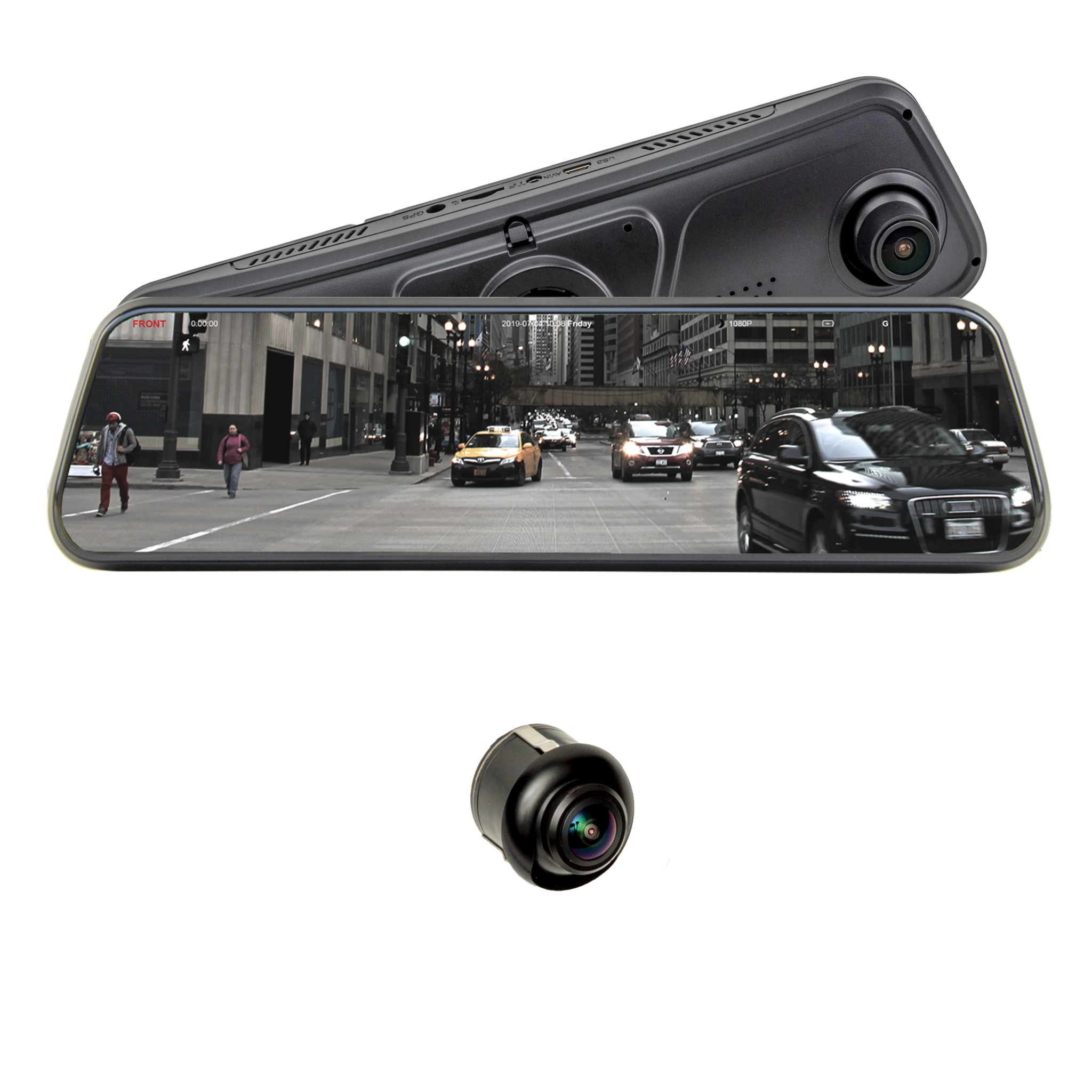

FullVUE® AHD Mirror Vision System with Adjustable Snap-In Cam

NEW PRODUCT! The Brandmotion FullVUE® AHD Mirror Vision System with Adjustable Snap-In Cam offers a live streaming full HD mirror and camera that reduces blindspots while driving by providing a clear, crisp view of exactly what you need to see behind you without obstructions of partitions, passengers, cargo, or small rear windows. It includes an integrated dash-cam and DVR recording for your protection and is equipped with night time and park-mode settings.
Home Shop Mirrors FullVUE® AHD Mirror Vision System with Adjustable Snap-In Cam

0

User feedback

FullVUE® AHD Mirror Vision System with Adjustable Snap-In Cam

NEW PRODUCT!

The Brandmotion FullVUE® AHD Mirror Vision System with Adjustable Snap-In Cam offers a live streaming full HD mirror and camera that reduces blindspots while driving by providing a clear, crisp view of exactly what you need to see behind you without obstructions of partitions, passengers, cargo, or small rear windows. It includes an integrated dash-cam and DVR recording for your protection and is equipped with night time and park-mode settings.

Part Number:

FVMR-1155

Category:

Categories: ,

MSRP

$559.95

Purchase Options

LEARN MORE AT

Includes Support by Crutchfield℠

  • Always On, Digital Observation
  • Full Touchscreen For Easy Adjustments
  • Advanced Anti-Glare Tempered Glass Screen
  • Retains Standard Mirror Functionality With One Touch
  • Automatic Brightness Adjustment
  • 2 Channel DVR Functionality
  • Built-In G-Shock Sensor For Automatic Event Recording
  • Built-In Front Facing Camera with DVR Recording
  • Includes 32 GB SD Card
  • Drill In Rear Camera

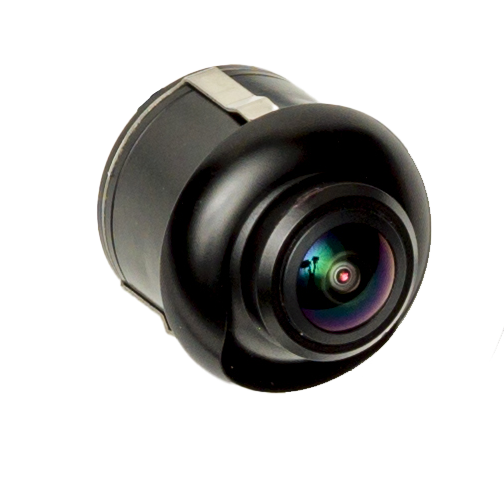

CAMERA

Working Voltage DC 5V
Rated Voltage / Current 120mA
Working Temperature -25°C to 75°C
Storage Temperature -30°C to 80°C
Connection Type Wired to mirror
Mounting Locations Rear
Mounting Type Drill-in
Field of View (H) (V) 155°
Low Light Night Vision 0.1Lux
Lens Size 16mm
Built in IRs No, it is low illumination
Waterproof Rating IP67
Video Format Output AHD 1080p 60FPS
Resolution 1920(H)×1080(V)

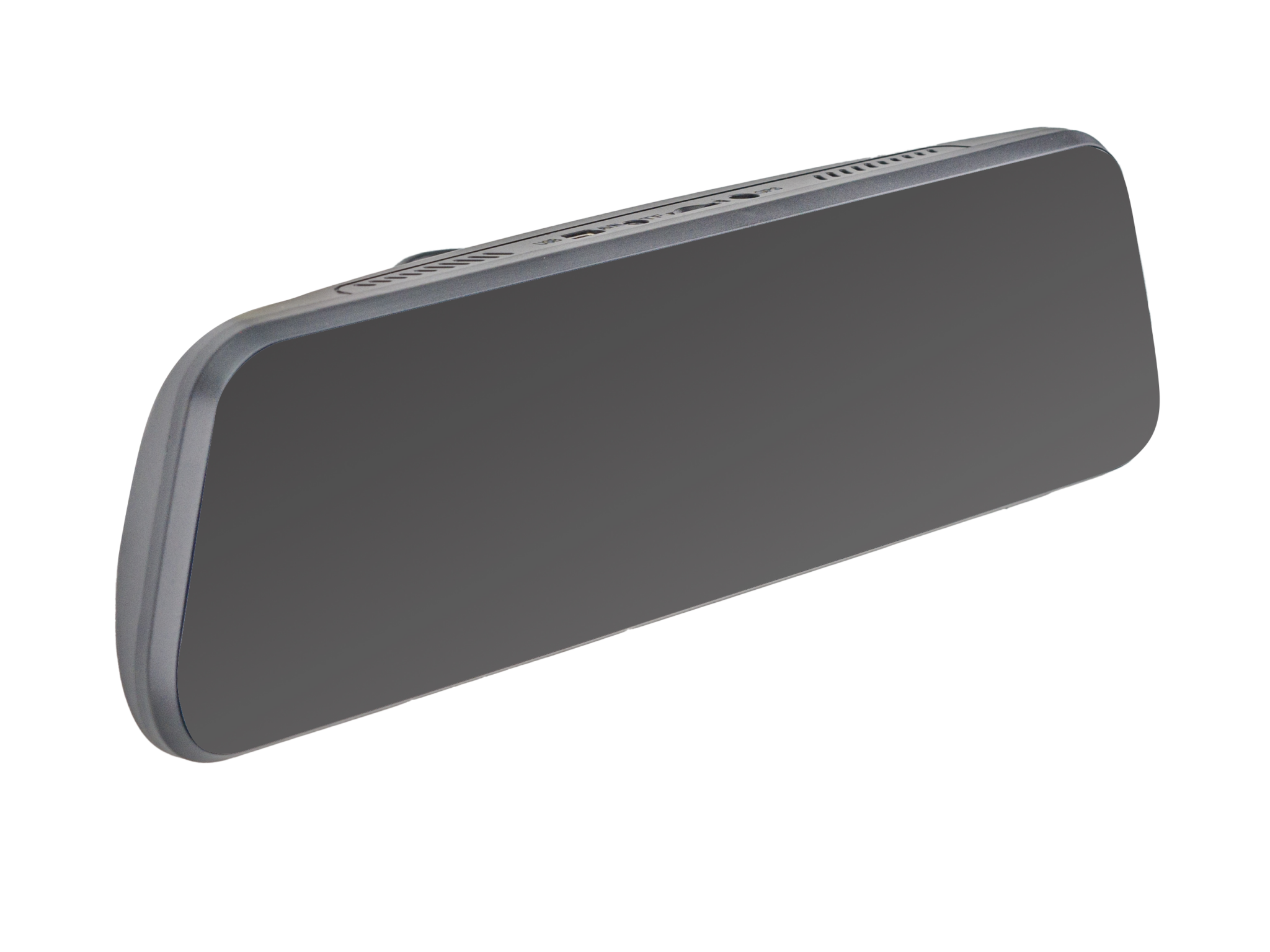

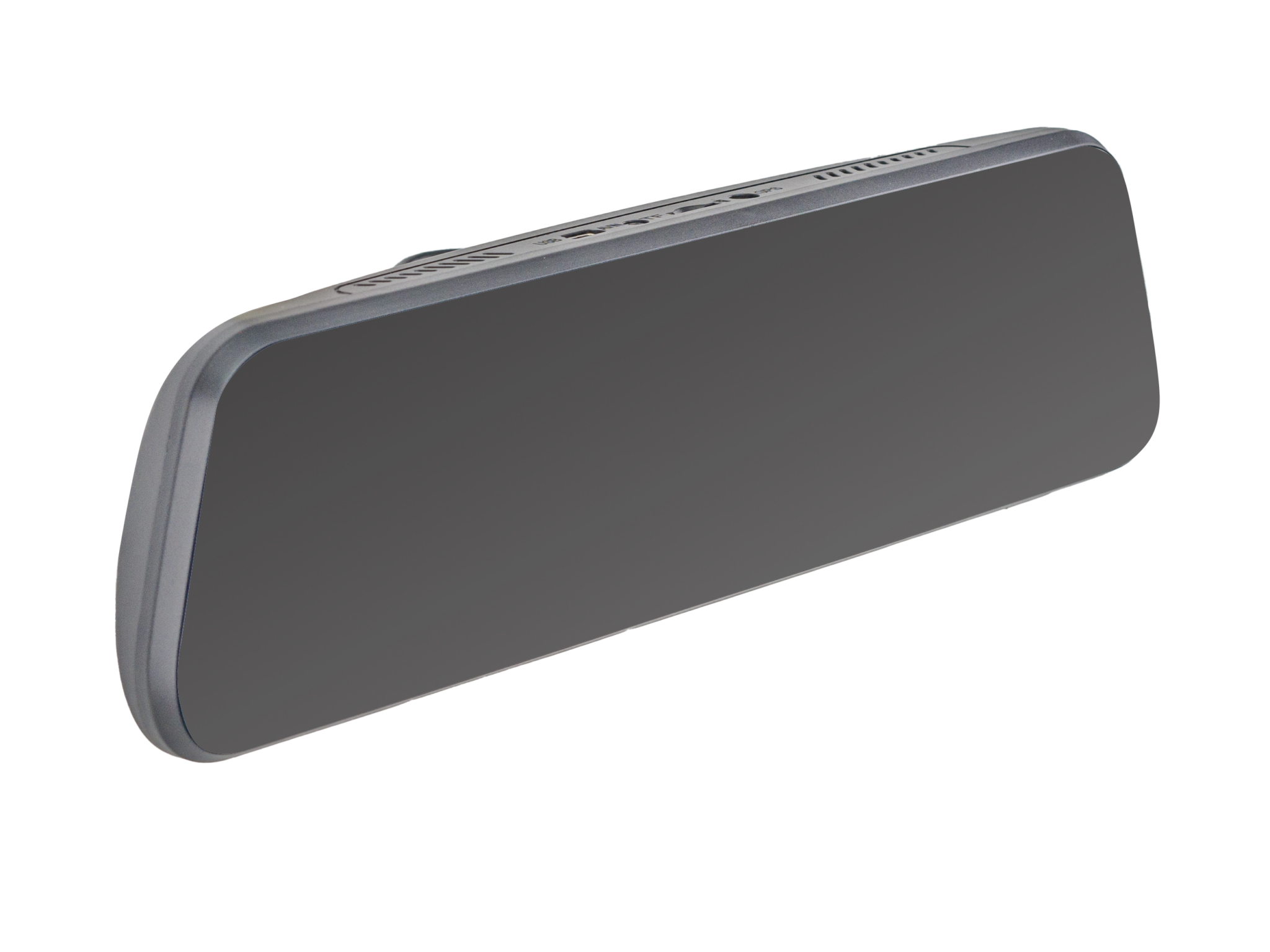

MIRROR

  • Working Voltage DC 12V/24V
  • Rated Voltage / Current
  • Power Consumption 5W
  • Working Temperature -20°C to 70°C
  • Storage Temperature -30°C to 80°C
  • Display Brightness 800cd/m2
  • Screen Size 9.66 inch
  • Resolution 320*1280
  • Camera Connection Type Wired
  • Video Format Input TVI
  • DVR Built-in Y/N Yes (to micro SD card)
  • Video trigger input triggers No
  • Second camera Yes
  • Resolution 1920 x 1080 Resolution 1080p  Front Camera

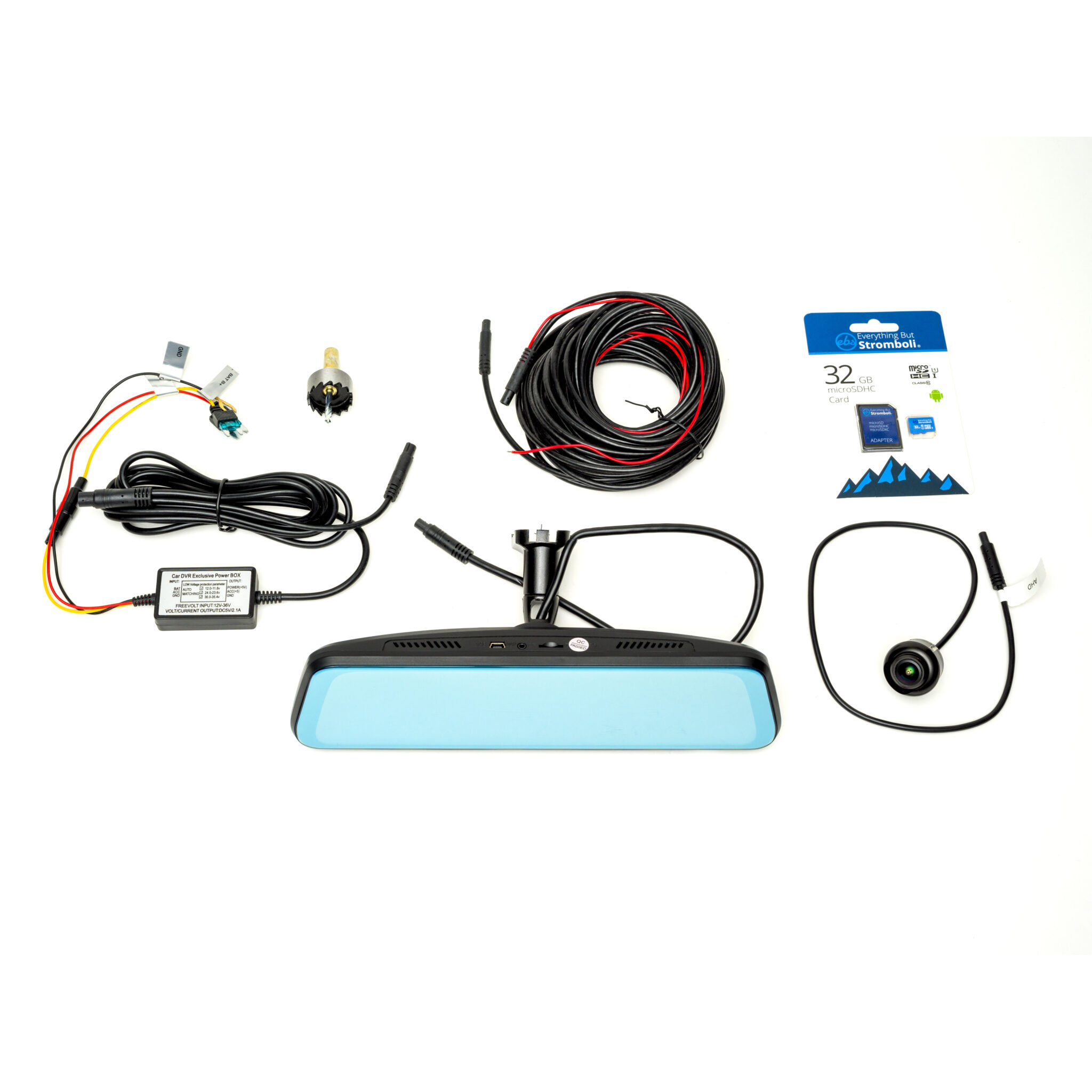

Harness

  • 40 foot plus 20 Foot Harness Lengths



  • Universal
  • Ideal for RAM Promaster and Ford Transit Vans
